Hubbell Hubbell GFHW13115


Description

Industry Description

Hubbell Wiring Device Kellems, Power Protection Products, Hard WiredGFCI, Industrial/Commercial, Audible Alarm, 30A 120V AC, 4-6 mA TripLevel, Yellow

Modified Industry Description

30A 120V AUTO GFCI HARD WIRED

AD Description

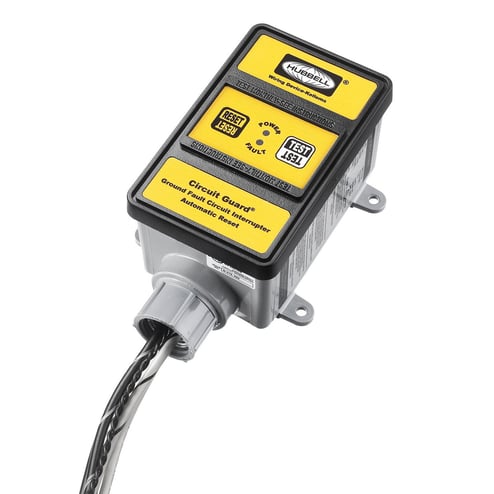

Wiring Device-Kellems Circuit Guard® GFHW13115 3-Wire Automatic Multi-Strand Industrial Grade Hard Wired GFCI, 120 VAC, 30 A, 3600 W, NEMA 4X Enclosure, Thermoplastic

Specifications

Amperage Rating
30
Application
Wire Into Circuit
Brand Name
Hubbell
Color
Black/Yellow
Conductor Material
Copper
Conductor Size
#10AWG
Construction
Fabricated
Country of Origin
US
Insulation_Material
Thermoplastic
Number Of Conductors
3
Special_Features

  • After a ground fault condition, unit must be reset by pushing the reset button
  • Automatic reset is ideal where temporary power failure is likely and undesirable such as waste water treatment plants, portable signs and some pump applications
  • Automatically energizes or sets the GFCI for use once power is applied to the circuit
  • Green light illuminates when unit has power and no ground fault is present
  • Offers a 4 to 6 mA trip level
  • Red light begins blinking when a ground fault is detected and the output power is interrupted
  • The alarm alerts you if a ground fault has occurred and the GFCI has tripped
  • The alarm may be disabled or wired into a switch so that the customer has the choice of use or non-use
  • This feature eliminates the need for the unit to be reset each time the power is turned on

Standard
UL943
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Type
Industrial Grade
Voltage Rating
120
