Hoffman Hoffman CWHD4045LG
Hoffman CWHD4045LG
Kirby Risk #: 2081803
UPC: 78351015749, 783510157494, 00783510157494
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
Concept Deep Hinged Window Kit, fits 400x450mm, Steel
Modified Industry Description
WINDOW KIT - DEEP HINGED, FITS
AD Description

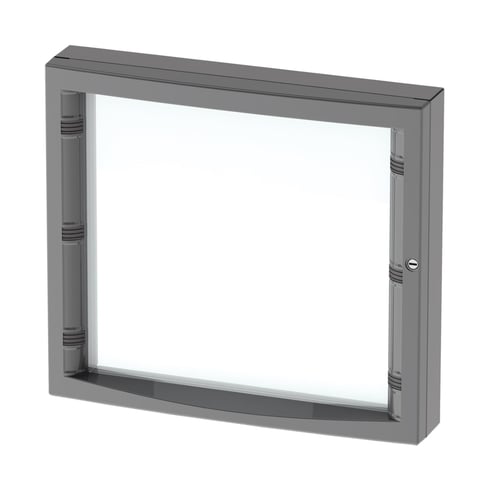

Hoffman CONCEPT™ CWHD4045LG C2 Deep Hinged Concept Window Kit, 13.5 in H x 14.4 in W, 15.75 in H x 17.72 in W x 3.39 in D, For Use With CONCEPT™ 400 x 450 mm Operator Interface Enclosures, Steel, Light Gray, Textured
Vendor Description
Kit is hinged on left side and has a single-point slotted latch (optional locking or non-locking wing knob latch is also available). Aesthetic die-cast aluminum frame has .188-in. (5-mm) thick, clear polycarbonate window. Two-inch space between enclosure front opening and window surface accommodates switches, lights, meters and other components. This kit can be used as an accessory window kit on larger standard HOFFMAN enclosure doors. Textured finish, ANSI 61 gray or RAL 7035 light gray.
Specifications
| Application |
Kit is hinged on left side and has a single-point slotted latch (optional locking or non-locking wing knob latch is also available). Aesthetic die-cast aluminum frame has .188-in. (5-mm) thick, clear polycarbonate window. Two-inch space between enclosure
|
|---|---|
| Brand Name |
Hoffman
|
| Color |
Light Gray
|
| Country of Origin |
US
|
| Material |
Steel
|
| NEMA_Rating |
NEMA 12/IP66
|
| Series |
C2 Series
|
| Size |
fits 400X450mm
|
| Special Features |
|
| Sub_Brand |
Hoffman
|
| Type |
Deep Hinged
|
