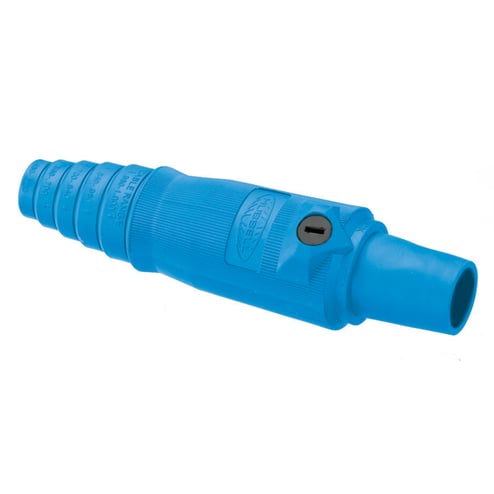

Hubbell Hubbell HBL400FBL


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Female, Plug, 400A 250V DC/600V AC, Single Conductor,Double Set Screws, Blue

Modified Industry Description

400A 600/250V FEMALE BLUE

AD Description

Wiring Device-Kellems HBL400FBL Female Locking Plug, 600 VAC/250 VDC, 400 A, 1 Poles, 1 Wires, Blue

Vendor Description

The name Hubbell Wiring Device-Kellems is synonymous with innovation and quality. In keeping with this reputation, Hubbell Wiring Device-Kellems has once again raised the bar by introducing a redesigned line of innovative, high quality, single pole plugs, receptacles and all the accessories for the single pole connector marketplace. The redesigned Hubbell single pole connector line is rated for 600 VAC and 250 VDC, up to 400 A for cable sizes #4 through 4/0. These single pole connectors are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. These single pole connectors have been designed with ease of assembly and disassembly in mind, No special tools are required. A high strength nonconductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Specifications

Amperage Rating
400
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Blue
Connection
Pressure Terminal Screws
Conductor Size
#2/0 AWG to #4/0 AWG
Cord_Type
Listed SC/PPC Type
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number_Of_Poles
1
Number_Of_Wires
1
Phase
1
Size
Standard Sized
Special Features

  • 2/0 to 4/0 AWG wire
  • Accommodates wide range of cables
  • Copper box terminals
  • Easier to rotate contact in body for installing retaining screw
  • Easily identifiable cable cut Off points for secure fit allows you to easily customize the housing to the required cable size
  • Extra long locking ring, non-conductive inner sleeve reduces force required to install housing over contacts
  • High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
  • Indoor dry unless protected by additional means
  • Makes cutting to the correct cable size very easy
  • Nylon seal cup material
  • Simplifies installation and saves time
  • Strip gauge molded into every plug and receptacle housing
  • Taper nose connector
  • Turn and lock symbol aids in the mating of devices
Standard
UL 498 for attachment plugs and receptacles UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Female
Voltage Rating
600 VAC/250 VDC
Wattage
240,000
