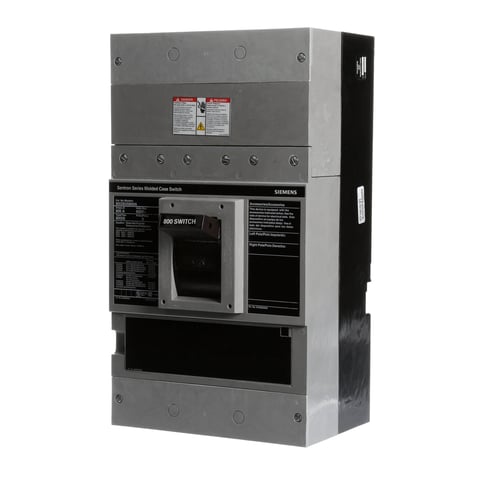

Siemens Siemens MXD63S800A
Siemens MXD63S800A
Kirby Risk #: 2079644
UPC: 78364321533, 783643215337, 00783643215337
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC ONLY TRIPUNIT. ASSEMBLED MOLDED CASE SWITCH (BREAKER) MD FRAME WITH STANDARD BREAKING CAPACITY. 800A 3-POLE 600V 8000A SELF-PROTECTIVE INSTANTANEOUS OVERRIDE. NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D)IN 9.00 x 16.0 x 6.00.
Modified Industry Description
BREAKER MD 3P 800A 600V 25KA FX SW
AD Description
Siemens Sentron™ MXD63S800A Type MXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 800 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic/LI Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
800
|
| Application |
Molded Case Switch
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
9.7 in L x 11.9 in W x 19.5 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
MXD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
19.5000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
UL/HACR/100% Rated
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
