NSI NSi PTS250
NSI PTS250
Kirby Risk #: 2079140
UPC: 66238103348, 662381033482, 00662381033482
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

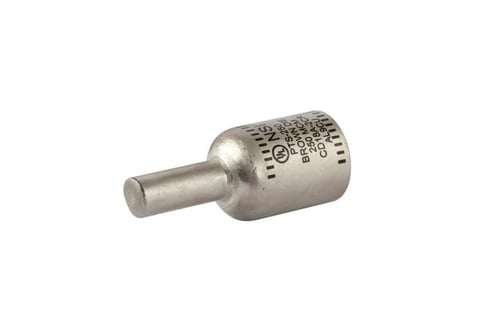

Solid Pin Terminal for Copper and Aluminum Conductors 250 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Modified Industry Description
Aluminum, Tin Plated Pin Terminal, 250 MCM Wire Size, 3/0 AWG SOLid Pin, BROWN
AD Description
NSI PTS250 Centered Dual Rated Pin Terminal With Plastisol Insulating Cover, 3/0 AWG to 250 kcmil Conductor, 0.46 in Dia x 1.22 in L Pin, Aluminum, Brown
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Brown
|
| Conductor Range |
250 MCM (STR)
|
| Connection |
3/0 Pin
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum
|
| Package_Quantity |
1
|
| Size |
L=2.62 - OD=1.09 - ID=.594 - Pin Dia=.460
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Solid Pin
|
| Voltage Rating |
600
|
