Panduit Pan-Net Panduit Pan-Net CJ66IWY


Description

Industry Description

Category 3, 6-position, 6-wire universal module. Off White.

Modified Industry Description

CAT 3 OFF WHITE MINI COM MODULE

AD Description

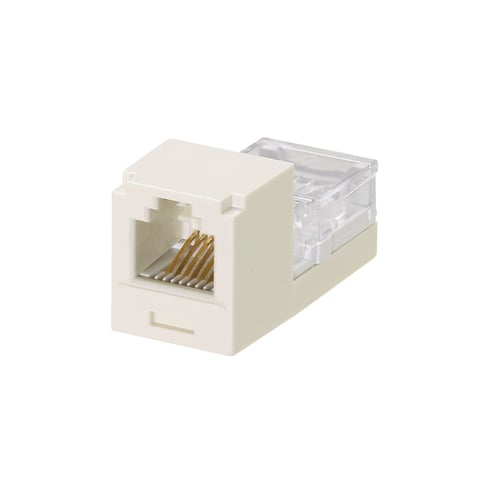

Panduit® Mini-Jack™ CJ66IWY 6-Position 6-Wire Leadframe Unshielded Universal UTP Jack Module, Cat 3/Mini-Com® Module, Surface Mount, 1 Port, ABS, Off-White

Specifications

Application
Unshielded
Brand Name
Panduit Pan-Net
Cable_Entry
T568A/T568B
Color
Off White
Country of Origin
CHN
Material
ABS
Model
Mini-Com®
Number Of Conductors
6
Number_Of_Ports
1
Slot_Capacity
1
Special Features

  • Accept 6 and 8 position modular plugs without damage
  • Can be clearly identified with optional labels and icons
  • Clear, removable termination cap provides easy troubleshooting
  • Compatible with Mini-Com® modular patch panels, faceplates and surface mount boxes
  • No punch down tool required, optional termination tool (CJT-X) ensures conductors are fully terminated
  • Optional RJ45 blockout device blocks out unauthorized access to jack modules and potentially harmful foreign objects, saving time and money associated with data security breaches, network downtime, repair and hardware replacement
  • Patented lead frame termination style ensures twists are maintained to within 1/2 in
  • Terminate 4 pair 24 and 22 AWG 100 ohm solid unshielded twisted pair cable
  • Termination cap provides excellent strain relief, helps control cable bend radius and securely retains wires
Standard
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand
Panduit
Type
6-Position 6-Wire Leadframe Unshielded Universal
Width_2
7.3000
Width_3
7.4000
