Panduit Pan-Net Panduit Pan-Net CJ588RDY

Name: Panduit Pan-Net CJ588RDY
Brand: Panduit Pan-Net
SKU: 2075661
Price: 15.53 USD
Availability: InStock

Panduit Pan-Net CJ588RDY

Kirby Risk #: 2075661

UPC: 07498303504, 074983035045, 50074983035040, 00074983035045

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit Pan-Net

Description

Industry Description

Category 5e, RJ45, leadframe, 8-position, 8-wire universal module, Red.

Modified Industry Description

CAT 5E RED MINI COM MODULE

AD Description

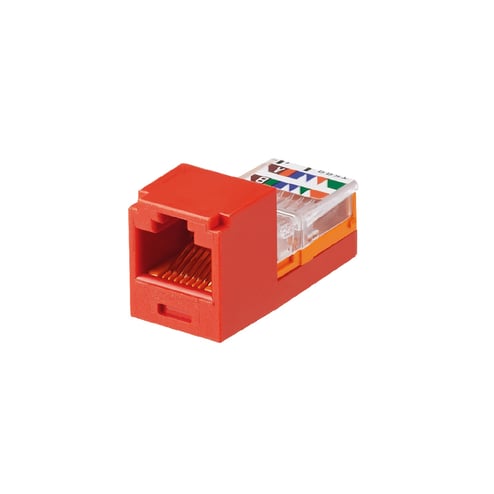

Panduit® TX5e™ CJ588RDY 8-Position 8-Wire Leadframe RJ45 Unshielded UTP Jack Module, Cat 5e/Mini-Com® Module, Surface Mount, 1 Port, ABS, Red

Application	Unshielded
Brand Name	Panduit Pan-Net
Cable_Entry	T568A/T568B
Color	Red
Country of Origin	CHN
Material	ABS
Model	Bus (jack)
Number_Of_Ports	1
Slot_Capacity	1
Special Features	Can be clearly identified with optional labels and icons for port identification CJT-X termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability Controls cable bend radius for long term installed performance Enables easy troubleshooting and eases conductor alignment during termination Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords backwards compatible Provides a simple and secure method to control access to data ports while not in use (optional) UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds and changes
Standard	Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand	Panduit
Type	8-Position 8-Wire Leadframe RJ45 Unshielded
Width_2	7.4000
Width_3	7.4000
