NSI NSi A530M


Description

Industry Description

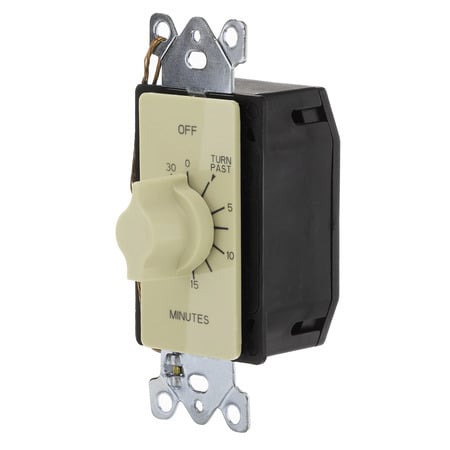

Tork 30 Min Twist Timer No Hold In-Wall Time Switch APPLICATIONS: Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Lights, Self Storage. FEATURES: COLOR: Ivory VARIABLE TIMING: Twist knob for time ON setting up to 30 minutes HOLD FEATURE: No Hold on this model. EASY SET : No adjustments. Just wire and go, EASY WIRING: No neutral required. Great for retrofit, Use as single or in multi-gang box with no de-rating. SWITCH TYPE: SPST "2 in 1" contacts wire has SPST also WALL PLATE: Fits standard or decorator style wall plates, see below (not included). CONTACT RATINGS: VOLTAGE: 125/250/277VAC 50/60Hz RESISTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A INDUCTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A TUNGSTEN: 125 VAC Rating: 7A MOTOR: 125VAC Rating: 1HP 250VAC Rating: 2HP CAUTION: This timer is not to be used in precision timing applications where inaccurate timing could have dangerous consequences (i.e. sun lamp, sauna, etc).

Modified Industry Description

30 MIN TWIST TIMER IVORY

AD Description

NSI Tork® A530M Auto Off Interval Mechanical Spring Wound Timer, 30 min Time Setting, 125/250/277 VAC, 1 hp/2 hp, SPDT Contact Form, 1 Poles

Specifications

Action
SPST
Amperage Rating
20/10
Application
Whole House Fans-Indoor-Outdoor Lighting-Bathroom Fans-Self Storage Control
Base
Wall Plate
Brand Name
NSi
Contact_Rating
125-250-277 VAC
Country of Origin
CHN
Enclosure
Single Gang Wall Plate
Environmental_Conditions
32-122 F
Frequency_Rating
50-60
Horsepower
1, 2
Initiation
Contact
Mounting
Single Gang Wall Plate
Mounting_Type
Wall
Number_Of_Poles
1
Operating_Temperature
32-122 F
Phase
1
Size
H=5.00 - W=3.00
Special Features

  • 1 hp at 125 VAC/2 hp at 250 VAC
  • 50/60 Hz frequency
  • 7 A at 125 VAC (tungsten), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (resistive), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (inductive)
  • Contact initiation
  • Interval timer
  • Ivory color
  • No hold in wall time switch
  • No neutral required, great for retrofit use as single or in multi-gang box with no de-rating
  • Single gang wall plate enclosure
  • Single phase
  • Twist knob for time on setting, Time on lengths from 15 min to 12 hr vary by model
  • Without wallplate
Standard
cULus
Sub_Brand
NSi
Timing_Range
0-30
Type
Auto Off Interval Mechanical
Voltage Rating
125/250/277
