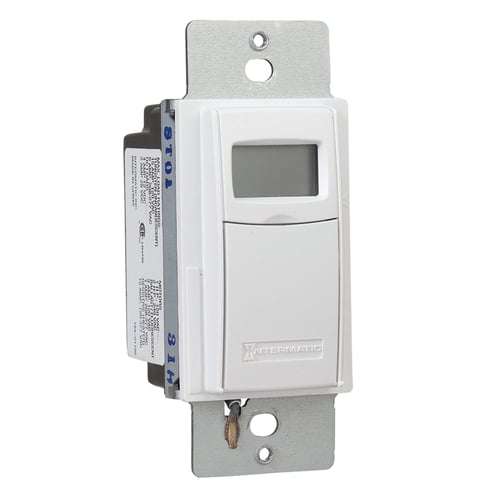

Intermatic Intermatic ST01C


Description

Industry Description

The 7D DIGTL PROG WALL SW TMR W/ASTRO FEAT In-Wall Timers are easy-to-program, 4-button programmable timers that allow up to 40 event settings per week. The timers have an Astronomic feature for sunrise and sunset switching.

Modified Industry Description

15A 208/277V - 7 DAY TIMER W/ ASTRO, 1 POLE

Specifications

Action
SP
Amperage Rating
15
Application
HVACR
Brand Name
Intermatic
Color
White
Connection
Wire Lead
Contact_Rating
15 AMP (Resistive, Tungsten), 6 AMP (Tungsten), 8 AMP (Ballast), 4 AMP (Ballast)
Country of Origin
CN
Horsepower
1
Mounting
Wall Mount
Mounting_Type
Wall
Number_Of_Poles
1
Operating_Temperature
+32 to +122 DEG F, 0 to +50 DEG C
Special Features

  • 1 hp at 120 VAC, 2 hp at 240 VAC motor power
  • 1-Pole or 3-way compatible
  • 4 hp at 12 VDC, 2 hp at 28 VDC
  • Astronomic feature provides sunset on and sunrise OFF settings or combine, astronomic features with specific timed ON/OFF programming
  • Auto daylight saving time adjustment
  • Continuously displays time of day, mode and load status
  • Controls switched outlets
  • CR2 lithium battery provides up to 2 years of time keeping without AC power
  • Easy to program for 24 hr or 7 day load control
  • Low battery indicator
  • No neutral required
  • Random in setting turns light on and off at slightly different times each day
  • Up to 40 ON/OFF events per week
  • User program selections are stored in non-volatile memory
  • White color
Standard
cCSAus Certified, HVACR, Title CA 20 Listed
Sub_Brand
Intermatic
Timer_Duration
7
Timing_Range
7
Type
Digital Heavy Duty
Voltage Rating
120/277
