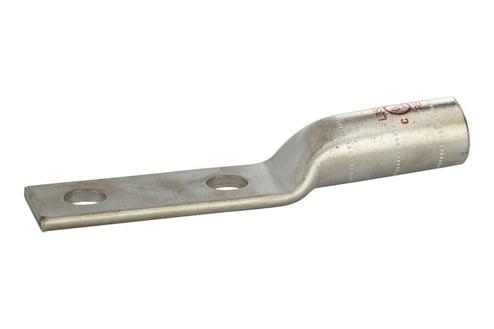

NSI NSi L350N


Description

Industry Description

2Hole Long Barrel Copper Compression Lug350 MCM-1/2" Bolt Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

Modified Industry Description

#350 CU COMPRESSION LUG

AD Description

NSI L350N LN Series 2-Hole Compression Lug, 350 kcmil Stranded Conductor, 1/2 in Stud, Copper

Specifications

Application
Terminate, Splice, Tap Power Connectors
Brand Name
NSi
Cable_Size
350 MCM (STR)
Color
Red
Conductor Material
Copper
Conductor Size
350
Country of Origin
IND
Finish
Tin Plated
Material
Copper
Mounting
1/2 Mounting Holes
Number_Of_Holes
2
Package_Quantity
1
Size
L=5.39 - W=1.28 - OD=.870 - ID=.700
Special_Features

  • Allows easy inspection of the termination to assure complete cable insertion
  • For applications greater than 2000 V, install to cable manufacturer voltage stress relief instructions
  • Listed for 35 kV maximum when properly installed
  • Marked with die index and color coded
  • Produced from high conductivity copper tubing
  • Tin plated to provide corrosion and low contact resistance

Standard
UL486
Stud_Size
1/2
Sub_Brand
NSi
Type
Long Barrel - Two Hole
Voltage Rating
600 V
