Hubbell Hubbell HBLDS3ACNK
Hubbell HBLDS3ACNK
Kirby Risk #: 2047447
UPC: 78358500377, 783585003771, 00783585003771
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 30A600V AC, Screw Terminals, Gray, NEMA4XEnclosure, With Aux Contact
Modified Industry Description
30A 600V DISC NON FUSED
AD Description

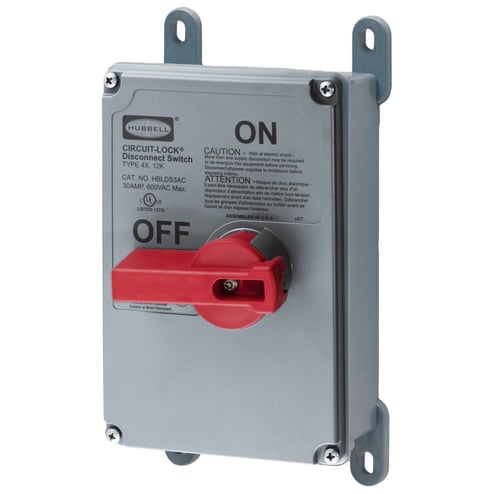

Wiring Device-Kellems Circuit-Lock® HBLDS3ACNK Industrial Grade Labelless Non-Metallic Standard Unfused Disconnect Switch With HBLAC1 Auxiliary Contact, 600 VAC, 30 A, 15 hp, 2-Position Contact, 3 Poles
Vendor Description
Hubbell® Circuit-Lock® non-metallic disconnects are frequently used in harsh environments. Frequent wash down, hot and high pressure water, caustic cleaning agents and UV light are common place. Hubbell® new laser marked covers ensure that ratings are now permanently marked.
Specifications
| Action |
Snap
|
|---|---|
| Actuator |
Lever
|
| Amperage Rating |
30
|
| Application |
Extra Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Connection |
Terminal Screws
|
| Contact_Configuration |
Two Position
|
| Country of Origin |
PL
|
| Enclosure |
Non-Metallic
|
| Environmental_Conditions |
NEMA 4X
|
| Frequency_Rating |
60
|
| Material |
Polybutylene Terephthalate/Composite
|
| Mounting |
Mounting Feet
|
| Number_Of_Poles |
3
|
| Operating_Cycles |
6k
|
| Operating_Temperature |
Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
|
| Phase |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 746C
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Industrial Grade Labelless Non-Metallic Standard Unfused
|
| Voltage Rating |
600
|
| Width_2 |
5.5000
|
