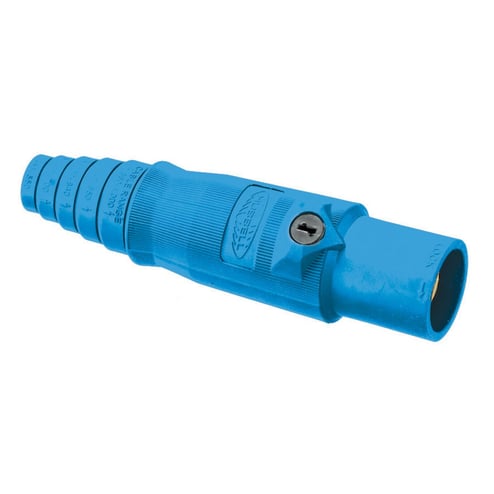

Hubbell Hubbell HBL400MBL
Hubbell HBL400MBL
Kirby Risk #: 2046180
UPC: 78358311227, 78358511227, 783585112275, 00783585112275
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Male, Plug, 400A 250V DC/600V AC, Single Conductor,Double Set Screws, Blue
Modified Industry Description
400A 600/250V MALE BLUE
AD Description
Wiring Device-Kellems HBL400MBL 16 Series Male Standard In-Line Plug With SC/PPC Cord, 600 VAC/250 VDC, 400 A, 4 to 2/0/2/0 to 4/0 AWG Wire, Pressure Screw
Vendor Description
Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. UL enclosure Types 3R, 4X and 12 rating suitable for use in almost any environment.
Specifications
| Amperage Rating |
400
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Blue
|
| Connection |
Pressure Terminal Screws
|
| Conductor Size |
#2/0 AWG to #4/0 AWG
|
| Cord_Type |
Listed SC/PPC Type
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
1
|
| Number_Of_Wires |
1
|
| Phase |
1
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 498 for attachment plugs and receptacles UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Male Plug
|
| Voltage Rating |
600//250
|
| Wattage |
240,000
|
