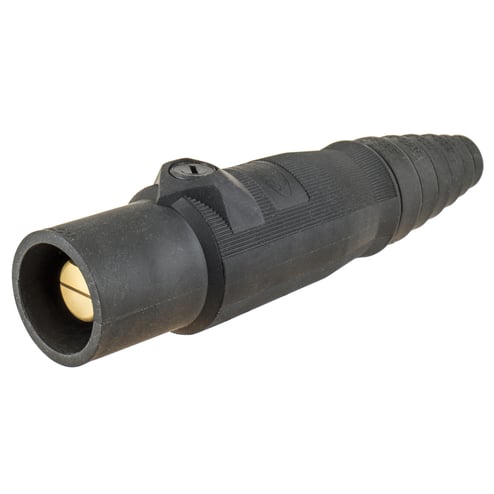

Hubbell Hubbell HBL400MBK


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Male, Plug, 400A 250V DC/600V AC, Single Conductor,Double Set Screws, Black

Modified Industry Description

BLACK MALE PLUG, 600/250V, 400A, 1 POLE, INDUSRIAL GRADE

AD Description

Wiring Device-Kellems HBL400MBK Heavy Duty Male Taper Nose Plug, 600 VAC/250 VDC, 400 A, 2/0 to 4/0 AWG Wire, Pressure Screw, NEMA 3R/4X/12K

Vendor Description

The name Hubbell® Wiring Device-Kellems is synonymous with innovation and quality. In keeping with this reputation, Hubbell® Wiring Device-Kellems has once again raised the bar by introducing a redesigned line of innovative, high quality, single pole plugs, receptacles and all the accessories for the single pole connector marketplace. The redesigned Hubbell® single pole connector line is rated for 600 VAC and 250 VDC, up to 400 A for cable sizes #4 through 4/0. These single pole connectors are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. These single pole connectors have been designed with ease of assembly and disassembly in mind, No special tools are required. A high strength nonconductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Specifications

Amperage Rating
400
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Black
Connection
Pressure Terminal Screws
Conductor Size
#2/0 AWG to #4/0 AWG
Cord_Type
Listed SC/PPC Type
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number_Of_Poles
1
Number_Of_Wires
1
Phase
1
Size
Standard Sized
Special Features

  • 1-wire
  • Double cam design with stress relief hole
  • Industrial grade
  • Insulgrip® style housing for superior gripping
  • Large raised alignment arrow
  • Non-conductive retaining screw
  • Rounded corners
  • Single conductor, double set screws
  • UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
  • UL 498 for attachment plugs and receptacles
Standard
UL 498 for attachment plugs and receptaclesUL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
Sub_Brand
Single Pole
Type
Heavy Duty Male Taper Nose
Voltage Rating
600 AC, 250 DC Max
Wattage
240,000
