NSI NSi L30048
NSI L30048
Kirby Risk #: 2040175
UPC: 66238103414, 662381034144, 00662381034144
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

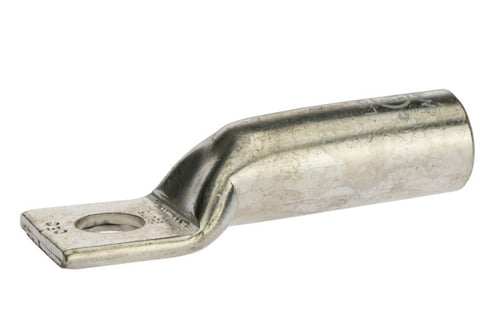

1 Hole Long Barrel Copper Compression Lug 300 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
Modified Industry Description
#300 CU COMPRESSION LUG
AD Description
NSI L30048 1-Hole Compression Lug, 300 kcmil Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
300 MCM (STR)
|
| Color |
White
|
| Conductor Material |
Copper
|
| Conductor Size |
300
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Hole
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Size |
L=3.38 - W=1.18 - OD=.815 - ID=.657
|
| Special Features |
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - One Hole
|
| Voltage Rating |
600 V
|
