Panduit Pan-Net Panduit Pan-Net CJ688TGIW


Description

Industry Description

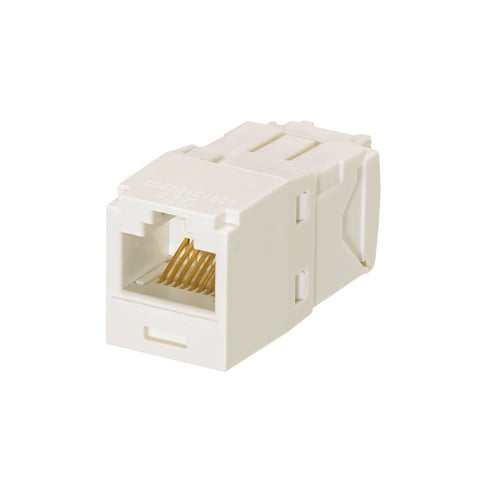

The Category 6, RJ45, 8-position, 8-wire, UTP Mini-Com® universal jack module has TG-style termination and is off white.

Modified Industry Description

CATEGORY 6 RJ45 OFF WHITE MINI COM MODULE

AD Description

Panduit® TX6™ PLUS CJ688TGIW 8-Position 8-Wire RJ45 Universal TG Style UTP Jack Module, Cat6/Mini-Com® Module, Surface Mount, 1 Port, ABS/Polycarbonate, Off White

Specifications

Application
Unshielded
Brand Name
Panduit Pan-Net
Cable_Entry
T568A/T568B
Color
Off White
Country of Origin
MUL
Depth
1.5
Material
ABS/Polycarbonate
Model
Bus (jack)
Number Of Conductors
8
Number_Of_Ports
1
Slot_Capacity
1
Special Features

  • Can be clearly identified with optional labels and icons for port identification
  • Confidence that each jack module will deliver the critical electrical performance requirements
  • EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability, TGJT termination tool ideal for high volume installations
  • Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
  • Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
  • Marked with quality control number for future traceability
  • Provides a simple and secure method to control access to data ports while not in use
  • Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
  • UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes
Standard
Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceed
Sub_Brand
Panduit
Type
8-Position 8-Wire RJ45 Universal TG Style
Width_2
7.3000
Width_3
7.4000
