NSI NSi 6TC-1
NSI 6TC-1
Kirby Risk #: 2028718
UPC: 66238100505, 662381005052, 00662381005052
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
Single Copper Lug 6-14 AWG Copper connector made from tubular copper. Steel Screw. Suitable for use with copper wire only. 600V (2000V max. per UL486B). Ul 486A/B Listed Wire Connector. Temperature rating 90 degrees C.
Modified Industry Description
SINGLE COPPER LUG 6-14
AD Description

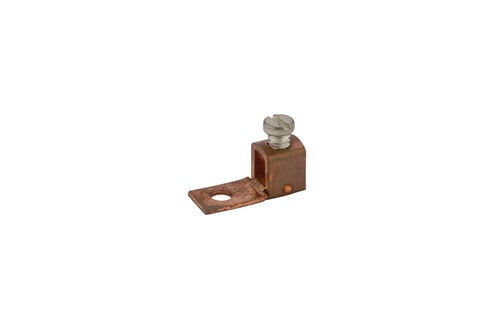

NSI 6TC-1 Mechanical Tubular Style Single Terminal Lug, 14 to 6 AWG Copper Conductor, 3/16 in Stud, Copper
Specifications
| Application |
Wire Termination
|
|---|---|
| Bolt_Size |
3/16
|
| Brand Name |
NSi
|
| Color |
Copper
|
| Conductor_Range_Main_Primary |
6-14 AWG
|
| Country of Origin |
USA
|
| Finish |
Copper
|
| Material |
Copper
|
| Number_of_Conductors_Ports_Main_Primary |
1
|
| Number_Of_Mounting_Holes |
1
|
| Number_Of_Ports |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL486B
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Copper Single Lug
|
| Voltage Rating |
600
|
