NSI NSi 600LL2
NSI 600LL2
Kirby Risk #: 2027758
UPC: 66238100169, 662381001696, 00662381001696
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
1 Port Panelboard Lug 600 MCM - 2 AWG Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".
Modified Industry Description
Aluminum Double Screw Lug 600-2 AWG
AD Description

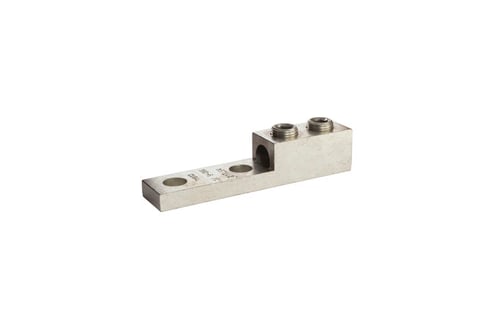

NSI 600LL2 Double Screw Panelboard Lug, 2 AWG to 600 kcmil Aluminum/Copper Conductor, 1/2 in Stud, 2 Bolt Holes, Aluminum
Specifications
| Application |
Wire Termination
|
|---|---|
| Bolt_Size |
1/2
|
| Brand Name |
NSi
|
| Color |
Silver
|
| Conductor_Range_Main_Primary |
600 MCM-2 AWG
|
| Conductor Size |
2 AWG to 600 kcmil
|
| Country of Origin |
USA
|
| Finish |
Electro-Tin Plated
|
| Material |
Aluminum
|
| Mounting_Hole_Spacing |
1.75
|
| Number_of_Conductors_Ports_Main_Primary |
1
|
| Number_Of_Mounting_Holes |
2
|
| Number_Of_Ports |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
cULus
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Double Screw
|
| Voltage Rating |
600
|
