NSI NSi GL300NB
NSI GL300NB
Kirby Risk #: 2027756
UPC: 66238133720, 662381337207, 00662381337207
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

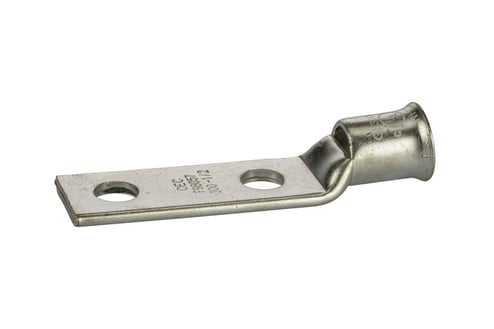

2 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 300 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
Modified Industry Description
#300 CU COMPRESSION LUG WITH BELLED
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
300 MCM (STR)
|
| Color |
White
|
| Conductor Material |
Copper
|
| Conductor Size |
300
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Holes
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Size |
L=4.41 - W=1.19 - OD=.810 - ID=.660
|
| Special Features |
300 MCM (STR) - 1/2 Mounting Holes
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Type |
Short Barrel - Two Hole
|
| Voltage Rating |
600 V
|
