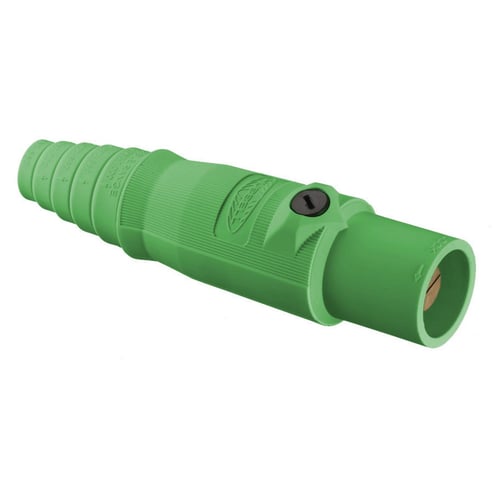

Hubbell Hubbell HBL300MGN


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Male, Plug, 300A 250V DC/600V AC, Single Conductor,Double Set Screws, Green

Modified Industry Description

GREEN MALE PLUG, 600/250V, 400A, 1 POLE, INDUSTRIAL GRADE

AD Description

Wiring Device-Kellems HBL300MGN 16 Series Heavy Duty Industrial Grade Male Standard Single Pole Plug, 600 VAC/250 VDC, 400 A, 4 to 2/0 AWG Wire, Pressure Terminal Screw, NEMA 3R/4X/12

Vendor Description

Hubbell Wiring Device-Kellems products have long set the standard for innovation, performance, safety and reliability. Temporary power installations are unique and unpredictable and therefore are very demanding. The most critical mission is to keep the equipment running. Hubbell devices have the proven reliability to deliver secure connections allowing you to focus attention on what matters most. Hubbell single pole devices are extremely durable. The double cam contact design can stand up to repeated mating and un-mating. The added protection of UL type 4X, 12 environmental rating stands up to the most abusive environments. The engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved.

Specifications

Amperage Rating
400
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Green
Connection
Pressure Terminal Screws
Conductor Size
#4 AWG to #2/0 AWG
Cord_Type
Listed SC/PPC Type
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number_Of_Poles
1
Number_Of_Wires
1
Phase
1
Size
Standard Sized
Special Features

  • Double cam design provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends life
  • Insulgrip® style housing for superior gripping
  • Large raised alignment arrow aids in the mating of devices
  • Makes it easy to connect and disconnect, even with gloves on
  • Non-conductive retaining screw locks contacts in place
  • Prevents contact movement within housing
  • Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
Standard
UL 498 for attachment plugs and receptacles UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Male Plug
Voltage Rating
600//250
Wattage
240,000
