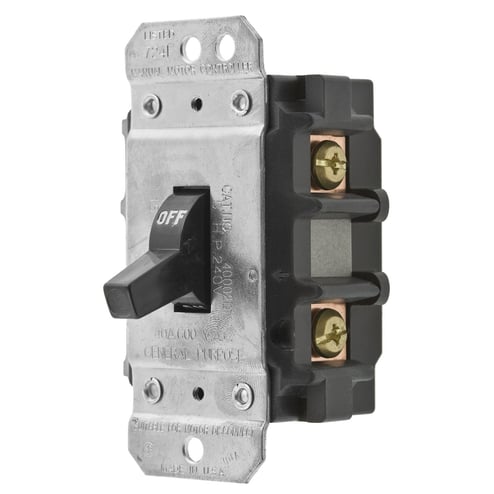

Hubbell Hubbell HBL7832D

Hubbell HBL7832D

Kirby Risk #: 2020845

UPC: 78358520281, 783585202815, 00783585202815

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, Switches and Lighting Control, MotorDisconnect, 2-Pole, 30A 600V, Back and Side Wired

Modified Industry Description

30A 600V - 2 POLE SINGLE THROW MOTOR SWTICH

AD Description

Wiring Device-Kellems HBL7832D Open Switch Manual Motor Controller, 2 Poles

Amperage Rating	30
Application	Motor Starting w/o Overload Protection
Brand Name	Hubbell
Connection	Pressure Screw Terminals
Country of Origin	US
Enclosure	Open
Environmental_Conditions	Indoor Dry unless Protected by Additional Means
Material	Black Nylon
Mounting	Screw Mount
Number_Of_Poles	2
Operating_Cycles	10000
Operating_Temperature	-40 to 75
Phase	1
Poles	2
Size	Standard Sized Product
Special Features	2 hp at 120 VAC, 5 hp at 240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC Manual motor controllers, inductive load Single throw, standard circuit lock toggle, side wired circuit lock wiring Toggle handle, manual starter
Standard	UL508
Sub_Brand	Hubbell Wiring Device-Kellems
Type	Open Switch
Voltage Rating	600
Width_2	4.0480
Width_3	13.1250
Width_4	13.1250
