Thomas & Betts Thomas & Betts 4972AL
Thomas & Betts 4972AL
Kirby Risk #: 2014989
UPC: 78621079763, 786210797632, 30786210797633
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

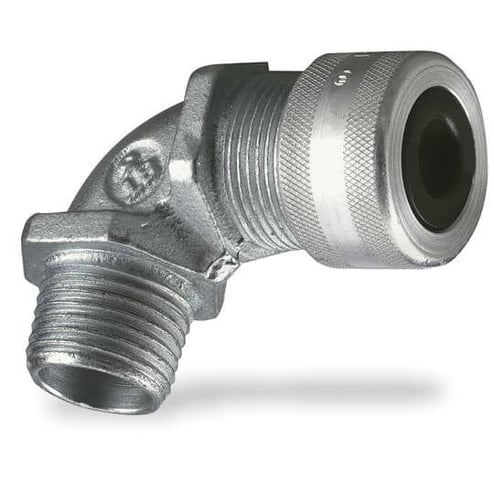

Liquidtight Strain Relief Connector, 3/4 Inch, 90 Degree Bend, Cord Range 0.500 to 0.750 Inch, Throat Diameter 25/32 Inch, Aluminum Body, Glandnut, and Grip, Rubber Bushing
Modified Industry Description
3/4IN 90 DEG ALUM RANGER CORD CONN
AD Description
T&B® Ranger® 4972AL Strain Relief Liquidtight Cord Connector, 3/4 in Trade, 1/2 to 3/4 in Cable Openings, Aluminum
Vendor Description
The Ranger® series steel liquidtight connector takes twice the cable range of most ordinary strain relief connectors. T&B® ranger connectors enable you to reduce your inventory and save time with one connector that can do the work of two.
Specifications
| Application |
Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Cable_Type |
S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD
|
| Color |
Metallic
|
| Conductor Range |
0.500 - 0.750 Inch
|
| Country of Origin |
CA
|
| Environmental_Conditions |
Ordinary, Wet, or Dry Locations
|
| Material |
Aluminum
|
| Special Features |
|
| Standard |
UL E13938, CSA 52391
|
| Sub_Brand |
Thomas & Betts
|
| Temperature_Rating |
-20 to 105
|
| Trade_Size |
3/4
|
| Type |
Strain Relief
|
| Width_2 |
4.0000
|
| Width_3 |
21.7000
|
