Hubbell Hubbell HBL430MIS2W

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle,30A 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight

Modified Industry Description

30A 600V 3 POLE 4 WIRE FEMALE RECEPTACLE

AD Description

Wiring Device-Kellems Circuit-Lock® HBL® Insulgrip® HBL430MIS2W 1/3-Phase Female Fused Grounding Industrial Grade Pressure Screw Terminal Style 2 Standard Watertight Mechanical Interlock, 600 VAC/250 VDC, 30 A, 3 Poles, 4 Wires

Vendor Description

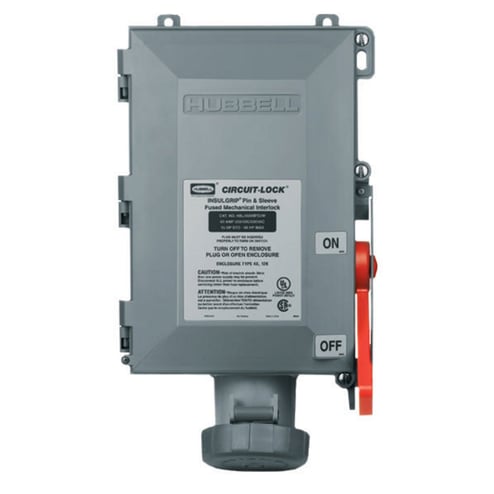

Hubbell® Circuit-Lock® pin and sleeve mechanical interlocks are a revolutionary design that incorporates a disconnect switch and pin and sleeve receptacle in a compact non-metallic unit. These devices offer maximum safety by preventing users from mating or breaking a circuit under load - Hubbell® interlock mechanism detects the presence of a plug and prevents it from being removed when the switch is in the ON position. It features a high visibility red handle that can be locked in the OFF position to meet OSHA lockout tagout regulations. The enclosure door can be locked to prevent unauthorized access. The rugged, corrosion resistant NEMA 4X PBT enclosure features adjustable mounting feet for flexible installation, while the receptacle's spring loaded cover with gasket is dust tight and provides a watertight seal when turned and locked. The patented Plug-Check™ mechanism detects the presence of the plug. It operates as a clutch to engage the handle with the switch and captures the plug. This action prevents the plug from being removed until the switch is turned OFF.
