Hubbell Hubbell 033271041


Description

Industry Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Pulling Grips,Overhead DUA-PULL, 1.1-1.4"

Modified Industry Description

PULLING GRIPS

AD Description

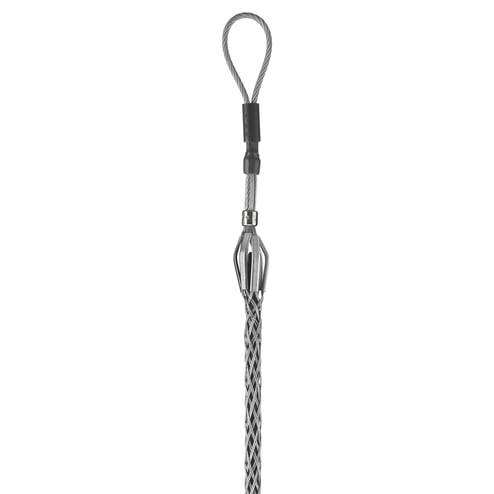

Wiring Device-Kellems DUA-PULL® 33271041 Standard Pulling Grip, 1.13 to 1.37 in Dia, 76 in L Mesh, 5/8 in Dia Eye, 9360 lb, Steel

Vendor Description

Kellems pulling grips are reusable tools for pulling electrical cable, bare conductor or rope. They are easy and fast to install, providing the user with a smooth, slim profile that allows for easy passage through ducts, conduit, blocks and sheaves. Kellems pulling grips are made of the highest quality galvanized steel strand which assures the user of a long-lasting grip. There is a Kellems pulling grip for every pulling job.

Specifications

Application
Overhead Pulling
Brand Name
Hubbell
Cable_Diameter_Range
1.25 in-1.70
Cable_Size
1.13 to 1.37 in Dia
Cable_Type
UL Listed Circuit Wire
Color
Yellow
Construction
Woven
Country of Origin
PR
Label_Description
FOR OVERHEAD TRANSMISSION LINE STRINGING APPLICATIONS
Material
Steel
Mesh_Length
76
Package_Quantity
1
Special Features

  • 46800 lb breaking strength
  • DUA-PULL pulling grips are the highest strength pulling grips manufactured for overhead transmission line stringing applications
  • DUA-PULL® mesh design offers the greatest holding power for all pulling applications
  • For overhead transmission line stringing applications
  • Galvanized steel eye, aluminum sleeve and shoulders, stainless steel lug, plastic tab and fastener
  • Galvanized steel strand
  • It will mate with swivels
  • They have a dual function, not provided by any other grip, of working with both bare and insulated conductors and synthetic rope
  • Works with both bare and insulated conductors and synthetic ropes
Standard
CSA Certified
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Standard
Width_2
3.5000
Width_3
12.3000
