Hubbell Hubbell 033291198


Description

Industry Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Fiber OpticGrips, Flexible Eye , .64-.87", Low Profile

Modified Industry Description

FIBER OPTIC GRIPS

AD Description

Wiring Device-Kellems 033291198 Pulling Grip, 0.64 to 0.87 in, 25 in L Mesh, 210 lb, Steel

Vendor Description

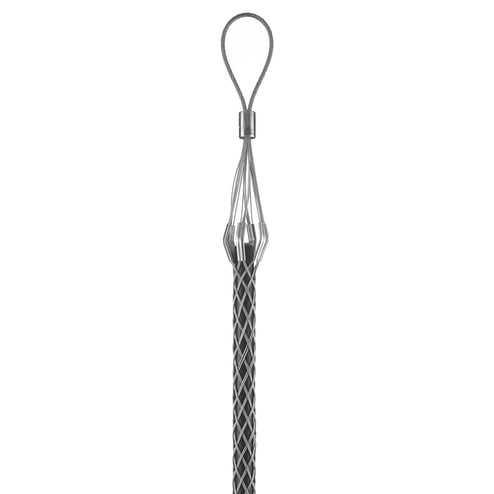

Kellems® Pulling Grips for fiber optic cable are made of high strength galvanized steel strand. They feature a multiweave mesh, with one-half the mesh length double weave, and the second half single weave. This special weave provides positive holding power while allowing the grip to remain flexible with no damage to the cable jacket. Added features include a steel nose cone which protects the cable end and allows the grip to pass easily through conduit and enclosures. The eye connects easily to a swivel or a pulling line. Several grip sizes are available to accommodate all diameters of fiber optic cable.

Specifications

Application
General Cable Pulling
Brand Name
Hubbell
Cable_Diameter_Range
0.64 in-0.87
Cable_Size
.64"-.87" (1.63-2.21)
Cable_Type
UL Listed Circuit Wire
Construction
Woven
Country of Origin
PR
Material
Steel, Galvanized
Mounting
Non-Mounted
Special Features

  • 840 lb working, 4200 lb breaking
  • A dependable, reusable pulling tool
  • Easily installed and removed
  • Galvanized steel mesh provides high strength
  • High strength multi-weave mesh for positive holding power
  • High strength multiweave mesh for positive holding power
  • Highly flexible mesh to follow the pulling path of the cable
  • Steel nose cone reduces snags and hang ups and protects cable end
Standard
CSA Certified
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Low Profile Flexible Eye
Width_2
4.0000
Width_3
16.8000
