Siemens Siemens E3RCND63B120
Siemens E3RCND63B120
Kirby Risk #: 1990031
UPC: 783643301504, 00783643301504, 78364330150
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

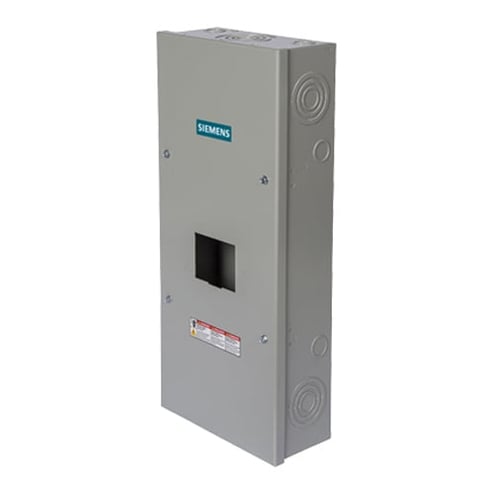

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 1200A 3-POLE 600V ST ANDARD 40 DEG C BREAKER NDFRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY (CND63B120). NON-INTERCHANGEABLE TRIP UNIT. NEMA TYPE 3R ENCLOSURE (MND63). ORDER NEUTRAL (W63623). INCLUDES LINE AND LOAD SIDE LUGS (TA4N8500) WIRE RANGE 250 - 500KCMIL (CU/AL). ENCLOSURE DIMENSIONS (W x H x D) IN 26.75 x 61.14 x 11.72.
AD Description
Sentron™ E3RCND63B120 Type CND6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 1200 A, 65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Specifications
| Amperage Rating |
1200
|
|---|---|
| Country of Origin |
US
|
| Dimensions |
64 in L x 30 in W x 13 in H
|
| Enclosure |
TYPE 3R
|
| Environmental_Conditions |
Outdoor
|
| Frame |
ND
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
65
|
| Length1 |
64.0000
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
(-25C -- 75C) AMBIENT TEMPERATURE
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
-25 to 75
|
| Type |
Type CND6 Low Voltage
|
| Voltage Rating |
600
|
