NSI NSi AL2/0N
NSI AL2/0N
Kirby Risk #: 1986675
UPC: 66238103101, 00662381031013, 662381031013
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
2HoleStandard BarrelAluminum Compression Lug 2/0 AWG -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
Aluminum Compression Lug 2/0 AWG, 1/2IN Bolt Size 2 Hole AL9CU Olive
AD Description

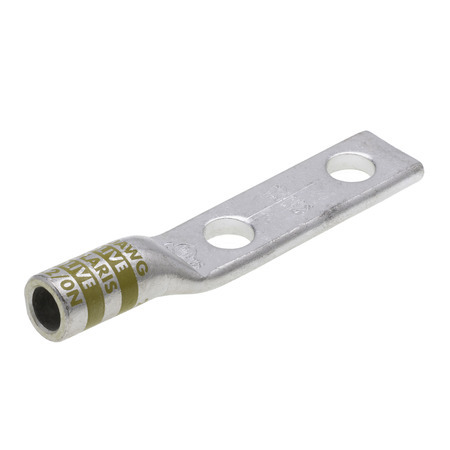

NSI AL2/0N 2-Hole Compression Lug, 2/0 AWG Stranded Conductor, 1/2 in Stud, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
2/0 AWG (STR)
|
| Color |
Olive
|
| Conductor Material |
Aluminum - Copper
|
| Conductor Size |
2/0
|
| Country of Origin |
IND
|
| Finish |
Tin Plated Bronze
|
| Material |
Aluminum
|
| Mounting |
1/2 Mounting Holes
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Size |
L=4.79 - W=.937 - OD=.690 - ID=.440
|
| Special Features |
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600
|
