Hubbell Hubbell HBL4100MI7WR

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle,100A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws,Red, Watertight- Reversed S

Modified Industry Description

100A 480V 3 POLE 4 WIRE FEMALE RECEPTACLE REVERSE SERVICE W/PINS

AD Description

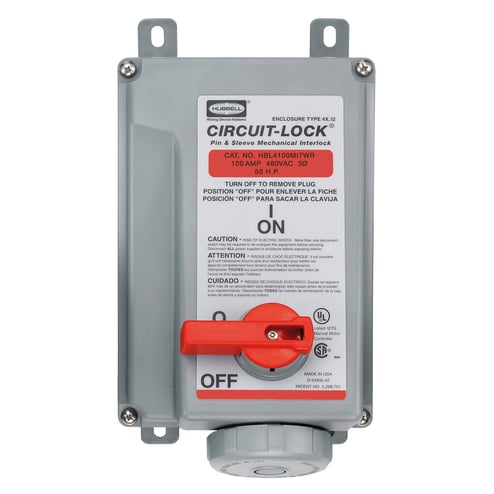

Wiring Device-Kellems Circuit-Lock® HBL4100MI7WR 3-Phase Female Single Standard Watertight Pin and Sleeve Mechanical Interlock, 480 VAC, 100 A, 3 Poles, 4 Wires

Vendor Description

Hubbell Circuit-Lock® pin and sleeve mechanical interlocks are a revolutionary design that incorporates a disconnect switch and pin and sleeve receptacle in a compact non-metallic unit. These devices offer maximum safety by preventing users from mating or breaking a circuit under load. Hubbell interlock mechanism detects the presence of a plug and prevents it from being removed when the switch is in the ON position. It features a high visibility red handle that can be locked to meet OSHA lockout/tagout regulations and the enclosure door can be locked to prevent unauthorized access. The rugged, corrosion resistant type 4X Valox® enclosure features adjustable mounting feet for flexible installation, while the receptacle's spring loaded cover with gasket is dust tight and provides a watertight seal when turned and locked.
