Fluke FLUKE I400S
Fluke I400S
Kirby Risk #: 1977443
UPC: 09596926858, 00095969268585, 095969268585
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Fluke
Description
Industry Description
AC Current Clamp With BNC Output, Amperage Rating: 40 AMP: 0.5 - 40 AMP, 400 AMP: 5 - 400 AMP, Voltage Rating: 1000 VAC, Frequency Rating: 45 - 400 HZ, Operating Temperature: 0 - 50 DEG C, Dimensions: 5.09 IN Length X 2-3/4 IN Width X 1.18 IN Height, 2.5 MR Output Cable Length, Accuracy: 40 AMP: 2 PCT Plus 0.015 AMP, 400 AMP: 2 PCT Plus 0.04 AMP, 5 - 10 KHZ Typical Bandwidth, 32 MM Maximum Conductor Size, CSA And CE Certified, CAT IV 600 V, CAT III 1000 V
Modified Industry Description
AC CURRENT CLAMP-ON PROBE
AD Description

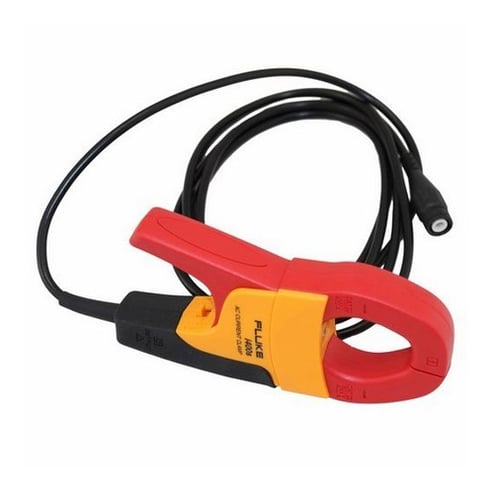

Fluke® I400S Clamp-On AC Current Probe, 1000 VAC, 1000 A, 0.5 to 400 A Measuring Range, 1.2 in Jaw
Vendor Description
Fluke® current clamps extend the current ranges of digital multimeters, power quality analyzers, and portable oscilloscopes and are available for both AC and AC/DC environments. The Fluke® i400s is specially designed to offer maximum utility in a compact shape and is the only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating.
Specifications
| Accuracy |
40 A Range: 2% + 0.015 A (45-400 Hz) 400 A Range: 2% + 0.04 A (45-400 Hz)
|
|---|---|
| Amperage Rating |
1k
|
| Application |
Measure current in conjunction with your scope or power quality meter
|
| Brand Name |
FLUKE
|
| Color |
Red/Yellow/Black
|
| Country of Origin |
UKN
|
| Diameter |
1.25
|
| DiameterInches |
1.25
|
| Dimensions |
1.25 in Dia x 12.91 in L
|
| Enclosure |
Hard Plastic
|
| Material |
Plastic
|
| Measuring_Range |
0.5 A - 400 A
|
| Model |
Fluke i400s
|
| Operating_Temperature |
0 to 50
|
| Package_Quantity |
1
|
| Repeatability |
None
|
| Safety_Rating |
CAT IV 600 V, CAT III, 1000 V
|
| Special Features |
|
| Standard |
CAT IV 600 V, CAT III, 1000 V
|
| Sub_Brand |
Fluke
|
| Tip_Material |
Hard Plastic
|
| Type |
Clamp-On
|
