Appleton Appleton WE1


Description

Industry Description

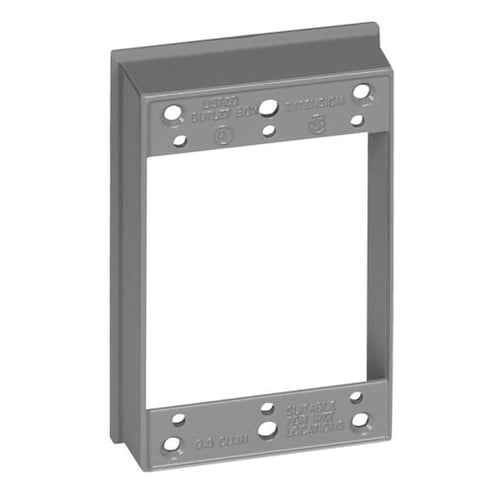

Single Gang Weatherproof Outlet Box Extension Ring, 1 IN Deep

Modified Industry Description

ONE GANG BOX EXT. 1IN DEPTH

AD Description

Appleton® ETP™ WE1 Weatherproof Outlet Box, Die Cast Aluminum, 9.5 cu-in, 1 Gang, 2.88 in L x 4.63 in W x 1 in D

Vendor Description

Appleton™ and O-Z/Gedney™ one-and two-gang metallic weatherproof outlet boxes, extension and covers are designed for branch circuit wiring in wet, damp or dry locations. They may be used as a junction box or a device box for switches, receptacles, GFCIs, etc. The continuous, seamless die cast construction prevents entry of dirt, dust and moisture. A polyester powder coating provides weatherproof durability. Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry.

Specifications

Application
Used to provide additional capacity needed for NEC box fill requirements.
Brand Name
Appleton
Color
Gray
Country of Origin
IN
Cubic_Capacity
9.5
Finish
Polyester Powder Coated
Material
Die Cast Aluminum
Mounting_Type
Lug
Number_Of_Gangs
1
Size
2.88 X 4.63
Special Features

  • Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection
  • Complete installation instructions are provided with each item
  • Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry
  • In use covers include patented inserts and comply with NEC requirements
  • Lamp holders are supplied with all hardware including locknuts, porcelain sockets and internal gaskets for reliability and weather protection
  • Lighting fixtures are factory assembled and fully gasketed to ensure fast and easy installation
  • Lockable covers and covers with integral devices are offered
  • Locking swivel knuckle on lamp holders permits positive lamp positioning and accurate directional aiming
  • Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts
  • Mounting hardware and gasket provided with each cover
  • Photocells and lamp holders are supplied with long leads (4 in from the end of the knuckle) to facilitate wiring
  • Polyester powder coating is applied for uniform cosmetic coating and weatherproof durability
  • Rugged continuous and seamless die cast construction prevents entry of dirt, dust and moisture
  • Smooth, accurately tapped hubs prevent wire abrasion
Standard
UL Standard 514A; UL Listed E2527; Nema FB-1, OS-1; CSA Standard C22.2 No. 18.1, cUL Listed E2527
Sub_Brand
Appleton
Type
One Gang Weatherproof Outlet Boxes
