NSI NSi A560MH


Description

Industry Description

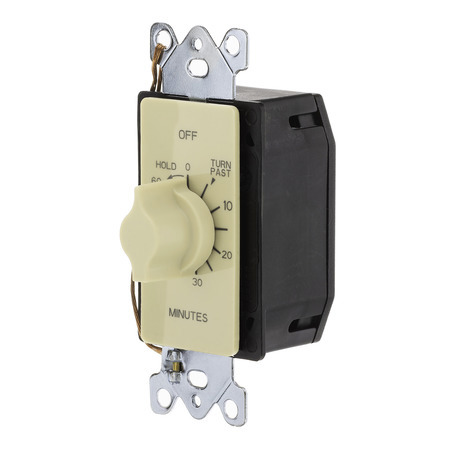

Tork 60 Min Twist Timer w/ Hold In-Wall Time Switch APPLICATIONS: Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Lights, Self Storage. FEATURES: COLOR: Ivory VARIABLE TIMING: Twist knob for time ON setting up to 60 minutes. HOLD FEATURE: Has position for constant ON (Hold). EASY SET : No adjustments. Just wire and go, EASY WIRING: No neutral required. Great for retrofit, Use as single or in multi-gang box with no de-rating. SWITCH TYPE: SPST WALL PLATE: Fits standard or decorator style wall plates, see below (not included). CONTACT RATINGS: VOLTAGE: 125/250/277VAC 50/60Hz RESISTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A INDUCTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A TUNGSTEN: 125 VAC Rating: 7A MOTOR: 125VAC Rating: 1HP 250VAC Rating: 2HP CAUTION: This timer is not to be used in precision timing applications where inaccurate timing could have dangerous consequences (i.e. sun lamp, sauna, etc).

Modified Industry Description

60 MIN TWIST TIMER IVORY W/HOLD

AD Description

NSI Tork® A560MH A Series 1-Phase Spring Wound Mechanical Timer With Hold, 60 min Setting, 125/250/277 VAC, 1 hp, 2 hp, SPDT Contact, 1 Poles

Specifications

Action
SPST
Application
Whole House Fans-Indoor-Outdoor Lighting-Bathroom Fans-Self Storage Control
Base
Wall Plate
Brand Name
NSi
Contact_Rating
125-250-277 VAC
Country of Origin
CHN
Enclosure
Single Gang Wall Plate
Environmental_Conditions
32-122 F
Frequency_Rating
50-60
Initiation
Contact
Mounting
Single Gang Wall Plate
Number_Of_Poles
1
Operating_Temperature
32-122 F
Phase
1
Size
H=5.00 - W=3.00
Special Features

  • 1 hp at 125 VAC, 2 hp at 250 VAC power rating
  • 20 A at 125 VAC, 10 A at 250 VAC, 10 A at 277 VAC amperage rating
  • Easy set, no adjustments, just wire and go
  • Easy wiring no neutral required, great for retrofit, use as single or in multi-gang box with no de-rating
  • Fits standard or decorator style 1-gang wall plates (not included)
  • Hold feature some models have position for constant ON
  • Ivory 60 min with hold in wall time switch
  • SPDT 2 in 1 contacts wire has SPST also, can wire as normally on and countdown while off
  • Variable timing twist knob for time ON setting, time ON lengths from 15 min to 12 hr vary by model
Standard
cULus
Sub_Brand
NSi
Timing_Range
0-60
Type
Spring Wound In Wall Time Switch
