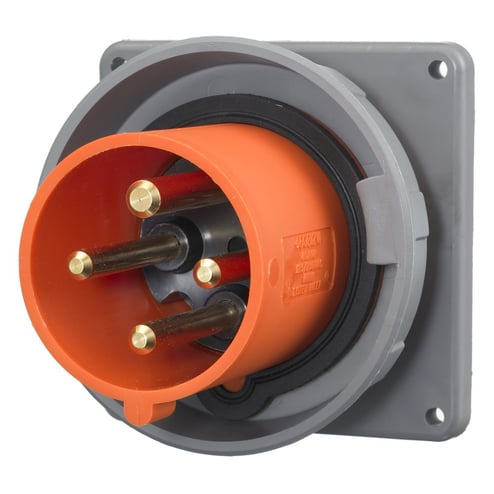

Hubbell Hubbell HBL460B12W


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Male, Flanged Inlet, 60A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Orange, Watertight

Modified Industry Description

60A 125/250V 3 POLE 4 WIRE MALE FLANGED INLET

AD Description

Wiring Device-Kellems HBL460B12W Flanged Male Single Standard Watertight Pin and Sleeve Inlet, 250/125 VAC, 60 A, 3 Poles, 4 Wires, Orange

Vendor Description

Hubbell® IEC 60309 pin and sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell® was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous of innovative features noted below.

Specifications

Amperage Rating
60
Application
High Ampacity Watertight Connections
Brand Name
Hubbell
Color
Orange
Connection
Pressure Screw Terminals
Conductor Size
#8AWG to #2AWG
Country of Origin
PR
Environmental_Conditions
Watertight
Insulation
Insulated Body
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
3
Number_Of_Wires
4
Phase
1
Size
Standard Sized Product
Special_Features

  • Gasketed sealing ring provides watertight seal
  • Heavy duty non-conductive nylon construction provides impact and corrosion protection
  • Provide safe and dependable performance in the most demanding environments
  • Raised collar surrounds each phase pin
  • Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
  • Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
  • Thermoset polyester contact carriers withstand high temperatures and provide resistance to electrical tracking

Standard
UL 498, IEC 309-1 and 309-2
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact
Type
Single Flanged Inlet
Voltage Rating
125/250
Wattage
15k
