Hoffman Hoffman APWK2016H
Hoffman APWK2016H
Kirby Risk #: 1963205
UPC: 783510197100, 78351019710, 00783510197100
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description

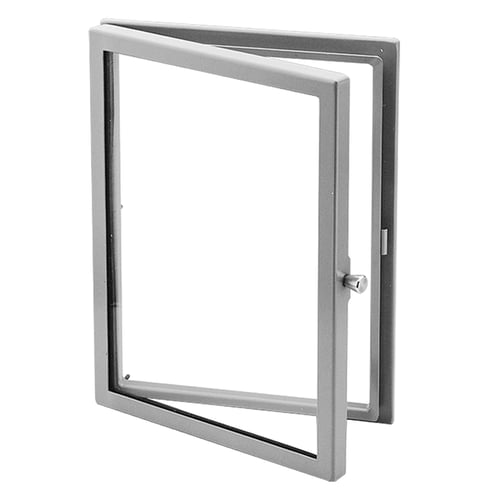

Type 12 Hinged Window Kit, 20.00x16.00x1.49, Gray, Steel
Modified Industry Description
WINDOW KIT 19.88X15.88
AD Description
Hoffman APWK2016H A80W Hinged Window Kit, 18.28 in H x 14.28 in W, 18.44 in H x 14.44 in W Cut Out, 20 in H x 16 in W x 1.49 in D, Steel, Medium Gray, Polyester Powder Painted
Vendor Description
For use as a viewing window where access to components mounted behind the window is required. Window is .25-in. (6-mm) clear polycarbonate. Easily mounted by drilling the appropriate mounting holes. All mounting hardware is provided. Continuous gaskets on all openings maintain UL Type 12 integrity. Finish is ANSI 61 gray polyester powder paint.
Specifications
| Application |
For use as a viewing window where access to components mounted behind the window is required. Window is .25-in. (6-mm) clear acrylic. Easily mounted by drilling the appropriate mounting holes. All mounting hardware is provided. Continuous gaskets on all o
|
|---|---|
| Brand Name |
Hoffman
|
| Color |
Medium Gray
|
| Country of Origin |
US
|
| Material |
Steel
|
| NEMA_Rating |
NEMA 12/IP55
|
| Series |
A80W
|
| Size |
20.00X16.00X1.49 in
|
| Special Features |
|
| Standard |
UL 508A Component Recognized, Type 12, File No. E61997, CSA Type 12, File No. 42186, NEMA/EEMAC Type 12, IEC 60529, IP55,
|
| Sub_Brand |
Hoffman
|
| Type |
Hinged
|
