Brand: NSI
Description
Industry Description

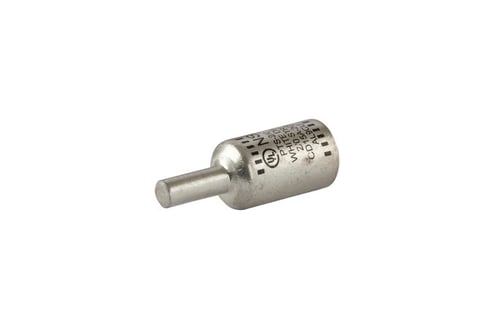

Solid Pin Terminal for Copper and Aluminum Conductors 2/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Modified Industry Description
#2/0 PIN TERMINAL
AD Description
NSI PTS2/0 Dual Rated Solid Pin Terminal, 2/0 AWG Conductor, 0.33 in Dia x 0.83 in L Pin, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
White
|
| Conductor Range |
2/0 AWG (STR)
|
| Connection |
# 1 Pin
|
| Conductor Size |
2/0 AWG
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum
|
| Package_Quantity |
1.000
|
| Pin_Diameter |
0.33
|
| Size |
L=2.20 - OD=.850 - ID=.429 - Pin Dia=.330
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
Pin Terminals
|
| Type |
Solid Pin
|
| Voltage Rating |
600
|
