Federal Signal Federal Signal 350TR-120
Federal Signal 350TR-120
Kirby Risk #: 1957993
UPC: 78297921412, 00782979214120, 782979214120
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Federal Signal
Description
Industry Description

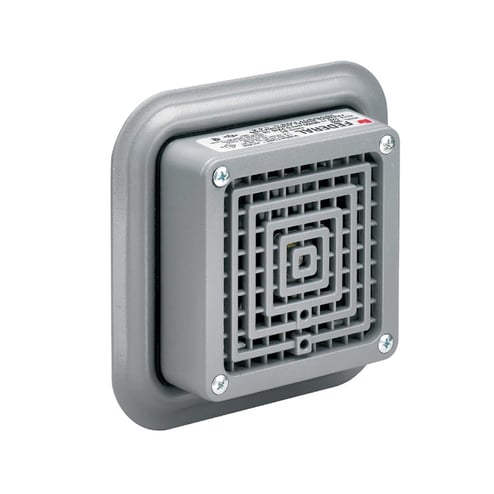

Vibratone Horn With Trim Ring 120VAC - Available in 24VAC and 120VAC. Produces 100 dBa at 10 feet (110 dBa at 1 meter). Coded or sustained tones. Type 4X and Type 12 enclosure. UL and cUL Listed, CSA Certified and FM Approved.
Modified Industry Description
120V VIBRATING HORN W/ TRIM RING, GRAY
AD Description
Federal Signal Vibratone® 350TR-120 Compact Heavy Duty Electronic Horn With Trim Ring, 120 VAC, 0.18 A, 110/100 dB, Indoor/Outdoor, Surface Mounting, Gray, Specifications Met: UL/cUL Listed, CSA Certified, FM Approved
Vendor Description
Model 350TR Vibratone® horn produces a loud tone by the electro-mechanical vibration of a diaphragm. Its compact size, loud output and heavy duty construction makes the 350TR ideal for industrial and institutional signaling applications. It's popularly used for general alarming, start-and dismissal noticing, coded paging and process control in noisy areas. The 350TR offers the benefits of quick and simple surface mount installation as each horn is supplied with a gasketed trim ring. The 350TR is enclosed in a zinc die-cast housing and sealed with gray powder-coat paint with a stainless-steel diaphragm.
Specifications
| Amperage Rating |
0.18
|
|---|---|
| Application |
Indoor/Outdoor
|
| Brand Name |
Federal Signal
|
| Color |
Gray
|
| Country of Origin |
US
|
| Decibels |
100 at 10 feet
|
| Dimensions |
5.6 in H x 5.6 in W x 2.5 in D
|
| DimensionsInches |
5.61 H x 5.61 W x 2.30 D
|
| Enclosure |
Type 4X/Type 12
|
| Frequency_Rating |
50/60
|
| Label_Description |
VIBRATONE HORN WITH TRIM RING, UL AND CUL, 120VAC, GRAY
|
| Loudness |
100dBa at 10 Feet
|
| Material |
Die Cast Zinc
|
| Mounting |
Surface
|
| Operating_Current |
180m
|
| Operating_Temperature |
-65 to 150
|
| Output_Signal |
120 AC 50/
|
| Special Features |
|
| Standard |
UL and cUL Listed, CSA Certified and FM Approved
|
| Sub_Brand |
Federal Signal
|
| Tone |
Horn
|
| Type |
Compact Heavy Duty
|
| Voltage Rating |
120
|
