Hubbell Hubbell HBL3100RS1W
Hubbell HBL3100RS1W
Kirby Risk #: 1956457
UPC: 783585010946, 78358501094, 00783585010946
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, Insulgrip Pin andSleeve Devices, Industrial Grade, Female, Receptacle, 100A 600V AC, 2-Pole 3-Wire Grounding Style1, Terminal Screws, Gray and Black,Watertight
AD Description

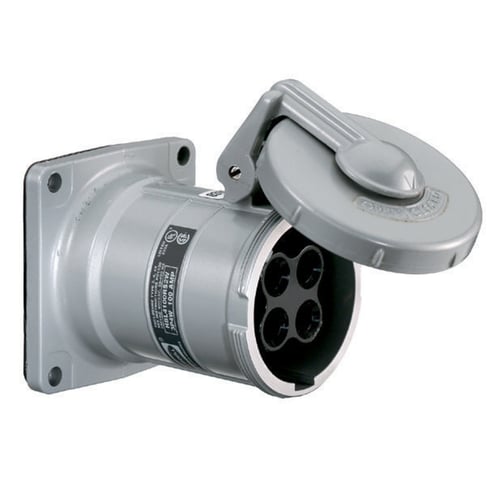

Wiring Device-Kellems Insulgrip® HBL3100RS1W Female Insulated Reversed Single Flanged Watertight Pin and Sleeve Receptacle, 600 VAC, 100 A, 2 Poles, 3 Wires, Black/Gray
Specifications
| Amperage Rating |
100
|
|---|---|
| Application |
High Ampacity Connections
|
| Color |
Black/Gray
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#3 AWG to #1/0 AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Length1 |
8.0000
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
UL 1686 Class 1 Insulgrip®
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, and UL1686
|
| Sub_Brand |
Pin and Sleeve Devices
|
| Type |
Single Flanged-Reversed
|
| Voltage Rating |
600
|
| Wattage |
60000
|
