Hubbell Hubbell HBL560MI7W


Description

Industry Description

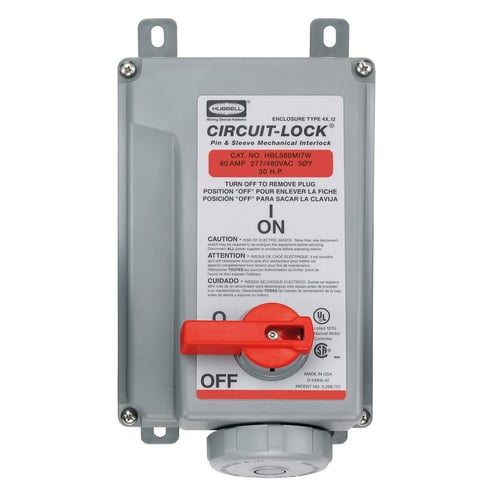

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Mechanically Interlocked Receptacle,60A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws,Red, Watertight

Modified Industry Description

60A 277/480V 4 POLE 5 WIRE FEMALE RECEPTACLE

AD Description

Wiring Device-Kellems Circuit-Lock® HBL® HBL560MI7W 3-Phase Female Grounding Industrial Grade Pressure Screw Terminal Standard Unfused Watertight Mechanical Interlock, 277/480 VAC, 60 A, 4 Poles, 5 Wires

Vendor Description

Hubbell® revolutionary Circuit-Lock® interlock incorporates the disconnect switch and receptacle in one compact, non-metallic and economical unit. Removing the plug and locking it out provides a visual means of verifying equipment has been disconnected. All Circuit-Lock® mechanical interlocks can be locked out as a method of compliance with the OSHA lockout tagout regulation. The switch cannot be turned ON until the plug is completely engaged and the plug cannot be removed until the switch is turned OFF. At the same time, it eliminates the possibility of making or breaking the circuit under load or making a casual or ''lazy'' connection. The non-metallic enclosure can be connected to the metallic conduit and not interfere with the ground continuity.

Specifications

Amperage Rating
60
Application
High Ampacity Watertight Connections
Brand Name
Hubbell
Color
Red
Connection
Pressure Screw Terminals
Conductor Size
#8 AWG to #2 AWG
Country of Origin
PR
Environmental_Conditions
Watertight
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
4
Number_Of_Wires
5
Phase
3
Size
Standard Sized Product
Special Features

  • (3) molded-in conduit drill points are located on the top, bottom and back surface of enclosure
  • 2-stage interlocking mechanism to help defeat tampering
  • Adjustable mounting feet are ductile to allow mounting on irregular surfaces
  • Color coded rating pad and receptacle mount to signify voltage
  • Comes with brass inserts and stainless steel screws for higher torque and better sealing
  • DIN rail mounted switch for easy installation and replacement
  • Horsepower rated disconnect switch handles large motor loads
  • IEC pin and sleeve devices are color coded by voltage for easy identification
  • Insulated non-metallic housing, super tough, non-conductive and chemical resistant for heavy duty industrial environment
  • Large gears enclosed in a gear box assembled on one plane to eliminate possible gear jumping
  • Lockable handle to meet OSHA lockout tagout regulations
  • Replaceable spring loaded lift cover with neoprene gasket for a watertight seal
  • Reverse service has dependable solid brass pins for longer life and reliable electrical contact
  • Self-closing gasketed cover, detents into position to fully close automatically
  • Watertight conduit hub and grounding plate for use on metallic conduit
Standard
UL 498, IEC 309-1 and 309-2
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Mechanically Interlocked Single
Voltage Rating
277/480
Wattage
28,800
