SolaHD SolaHD E500WA
SolaHD E500WA
Kirby Risk #: 1949853
UPC: 783472002306, 78347200230, 00783472002306
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description
Encapsulated Industrial Control Transformer 500VA, Volts Primary: 220x440, 230x460, 240x 480, Volts Secondary: 110, 115, 120, Frequency 50/60 HZ/60 HZ, Secondary Fuse Holder Glass or Ceramic - Type 3AG, 1/4 IN x 1-1/4 IN Fuse Type
Modified Industry Description
E500+FBPC1+FB2 FACTORY WIRED
AD Description

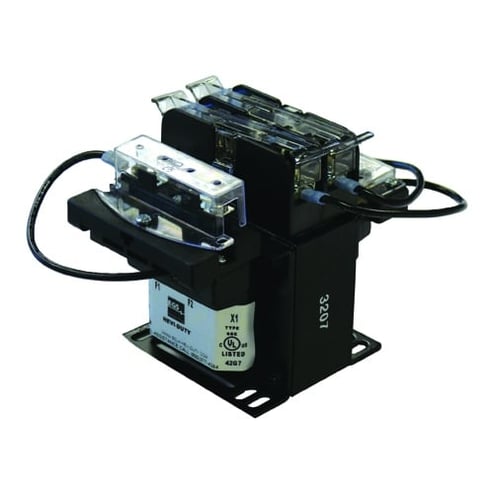

SolaHD E500WA SBE Type 3AG Encapsulated Control Transformer With Finger Safe Cover, 240/480 VAC Primary, 120 VAC Secondary, 0.5 kVA, 50/60 Hz, 1 Phase
Vendor Description
The SBE encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
Specifications
| Brand Name |
SolaHD
|
|---|---|
| Country of Origin |
US
|
| Frequency_Rating |
50/60
|
| Insulation |
105
|
| KVA_Rating |
0.5
|
| Mounting |
Heavy Gauge Steel Mounting Plate
|
| Number_Of_Channels |
220/440, 230/460, 240/480VAC
|
| Phase |
1
|
| Power_Rating |
0.5
|
| Primary_Voltage |
240/480
|
| Processor |
110,115,120
|
| Secondary_Voltage |
120
|
| Special Features |
|
| Standard |
UL (CANADA AND US)
|
| Sub_Brand |
SolaHD
|
| Type |
Type 3AG Encapsulated
|
| VA_Rating |
500
|
| Wattage |
500VA
|
