Hoffman Hoffman PPBCV11200


Description

Industry Description

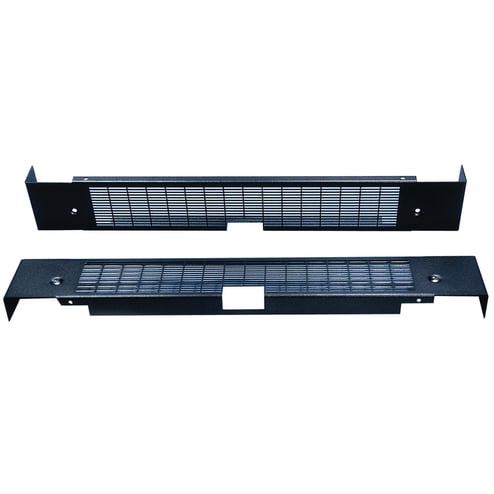

Vented Plinth Base Covers, fits 100x1200mm, Black, Steel

Modified Industry Description

VENTED PLINTH BASE COVER

AD Description

Hoffman ProLine™ PPBCV11200 P20 Vented Plinth Base Cover, 100 mm H x 47.2 in W, For Use With ProLine™ 100 x 1200 mm Double Bay Modular Enclosure Frames, Steel

Vendor Description

Vented Plinth Base Covers install in the front and rear openings of a standard plinth base in place of Solid Covers. Vented covers allow air to circulate into the enclosure. Vented Plinth Base Covers are available in 100-mm and 200-mm heights. These covers are finished with RAL 9005 black polyester powder paint and include all necessary mounting hardware. A standard plinth base must be ordered in combination with Vented Plinth Base covers to form a Vented Plinth Base. If using a gland plate with the Vented Plinth Base, order a vented gland plate to provide air circulation through the bottom of the enclosure.

Specifications

Application
Vented Plinth Base Covers install in the front and rear openings of a standard plinth base in place of Solid Covers. Vented covers allow air to circulate into the enclosure. Vented Plinth Base Covers are available in 100-mm and 200-mm heights. These cover
Brand Name
Hoffman
Color
Black
Country of Origin
MX
Material
Steel
Series
P20
Size
fits 100X1200mm
Special Features

  • A standard plinth base must be ordered in combination with vented plinth base covers to form a vented plinth base
  • If using a gland plate with the vented plinth base, order a vented gland plate to provide air circulation through the bottom of the enclosure
  • These covers are finished with RAL 9005 black polyester powder paint
  • Vented covers allow air to circulate into the enclosure
  • Vented plinth base covers install in the front and rear openings of a standard plinth base in place of solid covers
Sub_Brand
Hoffman
Type
Vented Plinth
