NSI NSi L70048B
NSI L70048B
Kirby Risk #: 1939303
UPC: 00662381337160, 662381337160, 66238133716
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

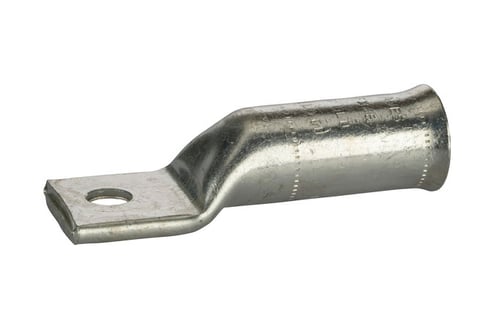

1 Hole Long Barrel Belled End Copper Compression Lug 700 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. Temperature rating 90 degrees C.
Modified Industry Description
# 700 CU COMPRESSION LUG WITH
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
700 MCM (STR)
|
| Conductor Material |
Copper
|
| Conductor Size |
700
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Hole
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Size |
L=4.97 - W=1.70 - OD=1.23 - ID=.975
|
| Special Features |
700 MCM (STR) - 1/2 Mounting Hole
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - One Hole - Belled End
|
| Voltage Rating |
600 V
|
