NSI NSi 300TP
NSI 300TP
Kirby Risk #: 1938930
UPC: 66238100241, 662381002419, 00662381002419
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

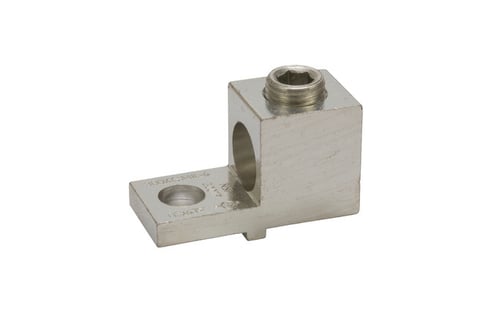

Dual Rated Turn Prevent Lug 300 MCM - 6 AWG Dual Rated Turn Prevent Lugs are made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C.
Modified Industry Description
TURN PREVENT LUG 300-6
AD Description
NSI 300TP Turn Prevent Lug, 6 AWG to 300 kcmil Aluminum/Copper Conductor, 7/16 in Stud, 1 Bolt Holes, Aluminum
Specifications
| Application |
Wire Termination
|
|---|---|
| Bolt_Size |
7/16
|
| Brand Name |
NSi
|
| Color |
Silver
|
| Conductor_Range_Main_Primary |
300 MCM-6 AWG
|
| Conductor Size |
6 AWG to 300 kcmil
|
| Country of Origin |
USA
|
| Finish |
Electro-Tin Plated
|
| Material |
Aluminum
|
| Number_of_Conductors_Ports_Main_Primary |
1
|
| Number_Of_Mounting_Holes |
1
|
| Number_Of_Ports |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
cULus
|
| Stud_Size |
7/16
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Aluminum Turn Prevent Lug
|
| Voltage Rating |
600
|
