NSI NSi 2-350TP


Description

Industry Description

Dual Rated Turn Prevent Lug (2) 350 MCM - 6 AWG Dual Rated Turn Prevent Lugs are made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C.

Modified Industry Description

TURN PREVENT TWO 350-6

AD Description

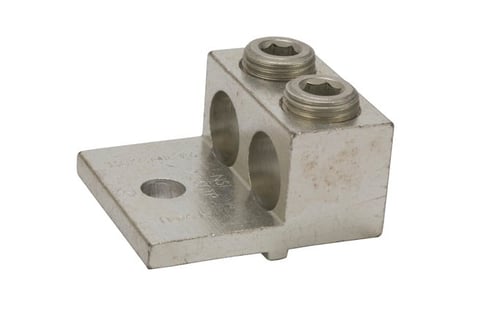

NSI 2-350TP Dual Rated Mechanical Turn Prevent Lug, 6 AWG to 350 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 6061-T6 Aluminum Alloy

Specifications

Application
Wire Termination
Bolt_Size
3/8
Brand Name
NSi
Color
Silver
Conductor_Range_Main_Primary
350 MCM-6 AWG
Country of Origin
USA
Finish
Aluminum
Material
Aluminum
Number_of_Conductors_Ports_Main_Primary
2
Number_Of_Mounting_Holes
1
Number_Of_Ports
2
Package_Quantity
1
Special_Features

  • Electro tin plated for low contact resistance
  • Large size setscrew connectors with wire holes stacked on top of each other to minimize the width of the connector
  • Made of 6061T-6 aluminum alloy
  • Turn prevent node located on bottom prevents rotation of lug

Standard
cULus
Sub_Brand
NSi
Temperature_Rating
90 C
Type
Aluminum Turn Prevent Lug
Voltage Rating
600
