NSI NSi 2/0TP
NSI 2/0TP
Kirby Risk #: 1938732
UPC: 00662381002402, 66238100240, 662381002402
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

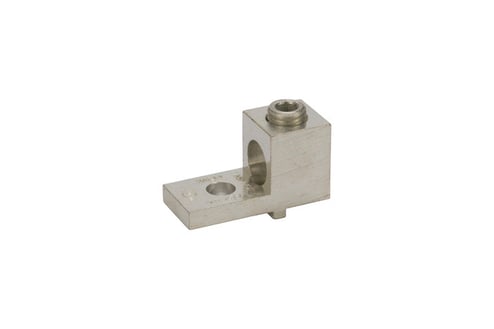

Dual Rated Turn Prevent Lug 2/0-14 AWG Dual Rated Turn Prevent Lugs are made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C.
Modified Industry Description
TURN PREVENT LUG 2/0-14
AD Description
NSI 2/0TP Turn Prevent Lug, 14 to 2/0 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Aluminum
Specifications
| Application |
Wire Termination
|
|---|---|
| Bolt_Size |
1/4
|
| Brand Name |
NSi
|
| Color |
Silver
|
| Conductor_Range_Main_Primary |
2/0-14 AWG
|
| Conductor Size |
14 to 2/0
|
| Country of Origin |
USA
|
| Finish |
Electro-Tin Plated
|
| Material |
Aluminum
|
| Number_of_Conductors_Ports_Main_Primary |
1
|
| Number_Of_Mounting_Holes |
1
|
| Number_Of_Ports |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
cULus
|
| Stud_Size |
1/4
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Aluminum Turn Prevent Lug
|
| Voltage Rating |
600
|
