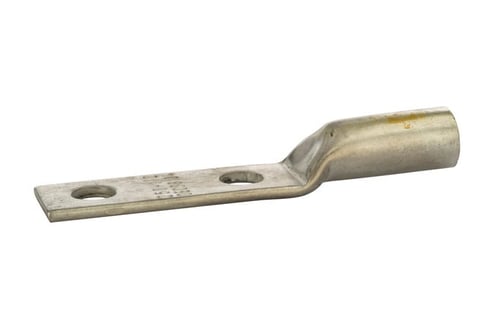

NSI NSi L250N
NSI L250N
Kirby Risk #: 1935569
UPC: 66238103513, 00662381035134, 662381035134
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
2Hole Long Barrel Copper Compression Lug250 MCM-1/2" Bolt Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
#250 CU COMPRESSION LUG
AD Description
NSI L250N 2-Hole Compression Lug, 250 kcmil Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
250 MCM (STR)
|
| Color |
Yellow
|
| Conductor Material |
Copper
|
| Conductor Size |
250
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Holes
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Size |
L=4.96 - W=1.09 - OD=.750 - ID=.590
|
| Special Features |
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600
|
