NSI NSi SS20F
NSI SS20F
Kirby Risk #: 1932835
UPC: 786261140081, 00786261140081, 78626114008
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

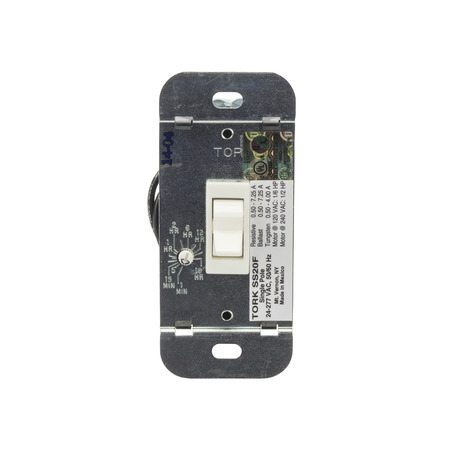

Tork Auto Off Electronic In-Wall Time Switch w/ Flicker Warning APPLICATIONS: Bathroom Fans and Lights, Indoor/Outdoor Lighting, Storage Areas, Hospitality Areas. FEATURES: COLOR: White VARIABLE TIMING: Choose from 1 minute to 18 hours. FLASH WARNING: F suffix models with flicker feature turns load off for 1/2 second, 2 minutes before end of timed cycle and again 1 minute before end of timed cycle. TAMPER RESISTANT: Time ON interval preset is hidden behind wall plate. EASY SET: Small screw driver adjustment provides quick set-up of timing. EASY WIRING: No neutral needed, great for retrofit. CONTACT RATINGS: VOLTAGE: 24/120/208-240/277VAC 50/60Hz RESISTIVE: 0.5-7.25A Volts: 24 Watts: 12 BALLAST: 0.5-7.25A Volts: 120 Watts: 60 TUNGSTEN: 0.5-4.0A Volts: 208 Watts: 105 MOTOR: 1/6HP @ 120VAC Volts: 240 Watts: 120 1/2HP @ 204VAC Volts: 277 Watts: 150
Modified Industry Description
1 POLE SOLID STATE IN WALL TIMER
AD Description
NSI SS20F Auto Off Wall Time Switch, 24/120/208/240/277 VAC Voltage, 50/60 Hz Frequency, 0 to 100 deg F Operating Temperature 1 min to 18 hr Scheduling, 18 AWG Wire, SPST Contact Form
Specifications
| Action |
SPST
|
|---|---|
| Application |
Bathroom Fans And Lights-Indoor-Outdoor Lighting-Storage Areas-Hospitality Control
|
| Base |
Screw
|
| Brand Name |
NSi
|
| Contact_Rating |
24-120-208-240-277 VAC
|
| Country of Origin |
MEX
|
| Environmental_Conditions |
0-+100 F
|
| Frequency_Rating |
50-60
|
| Initiation |
Contact
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
0-+100 F
|
| Phase |
1
|
| Size |
H=5.00 - W=3.00
|
| Special Features |
|
| Standard |
UL-CSA
|
| Sub_Brand |
NSi
|
| Timing_Range |
1-1.08k
|
| Type |
Auto Off In Wall Time Switch
|
