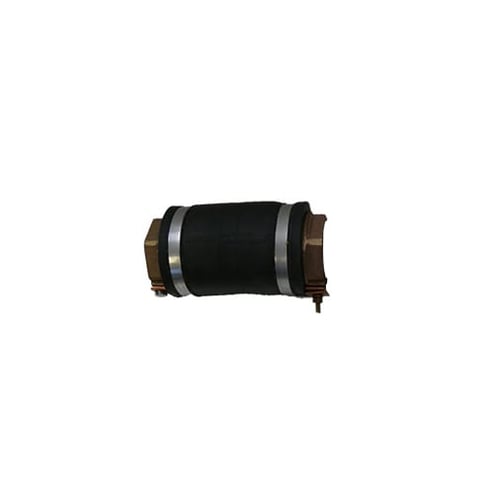

O-Z/Gedney O-Z/Gedney DX250


Description

Industry Description

Conduit Deflection/Expansion Fitting, Trade Size 2-1/2 Inch, Diameter 4-3/8 Inch, Length 8-1/2 Inch, Maximum Movement 3/4 Inch, 30 Deg, Constructional Feature Concrete-Tight, Raintight, Watertight (NEMA 4), Material Bronze End (Coupling), Neoprene (Sleeve), Stainless Steel (Band), Tinned Copper Braid (Bonding Jumper), Approval UL 514B, CSA C22.2, Used On IMC/Rigid Metal Conduit, Applicable Standard Federal Specification W-F-408E

Modified Industry Description

2-1/2 IN EXP DEFLECTION FTG

Specifications

Application
For Rigid Conduit And IMC
Country of Origin
MX
Dimensions
4-3/8 in OD x 8-1/2 in L
Enclosure
NEMA 4
Length1
17.6000
Material
Bronze
Outside_Diameter
4.38
Size
2-1/2
Special Features

  • Bronze end couplings, neoprene sleeve, stainless steel bands, tinned copper braid bonding jumper
  • Internal copper bonding jumper has the capacity to carry ground fault currents equal to the conductor sizes required by UL and the NEC®
  • May be used with PVC conduit by adding standard adapters in each end, concretetight, watertight and raintight
  • Watertight (NEMA 4), raintight and concretetight
Standard
UL File Number E-11853, UL 514B, CSA C22.2 No.18.3, CSA 11584, NEMA : FB-1
Type
Type DX
