Hoffman Hoffman PGLD1668CWS


Description

Industry Description

ProLine Gold Series Computer Workstation, Type 12, 1600x600x800mm, Lt Gray, Steel

Modified Industry Description

COMPUTER WORKSTATION ENCLOSURE

AD Description

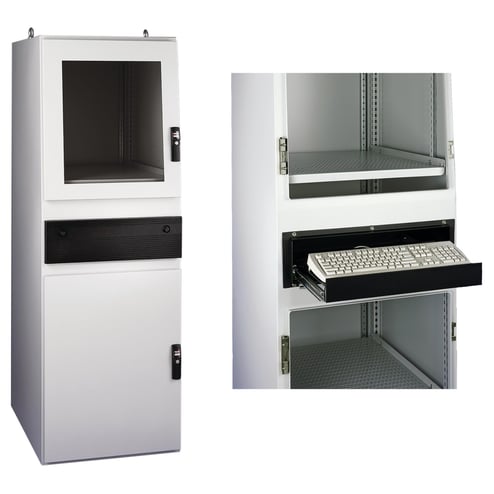

Hoffman ProLine™ PGLD1668CWS Gold/P10 Computer Workstation Enclosure, 1600 mm L x 600 mm W x 800 mm D, NEMA 12/IP55 NEMA Rating, Steel

Vendor Description

The ProLine Gold Series Computer Workstation is a full-featured, off-the-shelf solution for protecting PC computer systems. Made with sturdy unibody construction, the enclosure accommodates a complete range of accessories.

Specifications

Application
The PROLINE™ Gold Series Computer Workstation is a full-featured, off-the-shelf solution for protecting PC computer systems. Made with sturdy unibody construction, the enclosure accommodates a complete range of accessories.,
Color
Light Gray
Country of Origin
US
Finish
Polyester Powder Coated
Length1
1600
Material
Steel
NEMA_Rating
NEMA 12/IP55
Series
Gold/P10
Size
1600X600X800mm
Special Features

  • 14 and 16 ga steel doors and covers
  • 14 ga steel body
  • Full rear opening provides maximum mounting space and easy access to interior components
  • Hinges on bottom for 1400 mm enclosures
  • Internal rails facilitate mounting of ProLine™ internal components
  • Options include solid upper front door and solid front and rear covers with screw fasteners
  • ProLine™ latching system and keylocking swing door handles on upper front door for 1600 and 1800 mm high cabinets
  • quarter turn latches on upper front door for 1400 mm high cabinets
  • Seamless foam in place gasket on all doors and covers
  • Seams continuously welded and ground smooth
  • Solid centerpost on front for 1200 mm enclosures
  • Solid lower front and full rear doors with keylocking swing door handles
Standard
UL 508A Listed, Type 12, File Number E61997, cUL Listed per CSA C22.2 No 94, Type 12, File No. E61997, NEMA/EEMAC Type 12, IEC 60529, IP55
Sub_Brand
Hoffman
Type
PROLINE™ Gold Series Computer Workstation, Type 12
