Thomas & Betts Thomas & Betts BAC20SPBT


Description

Industry Description

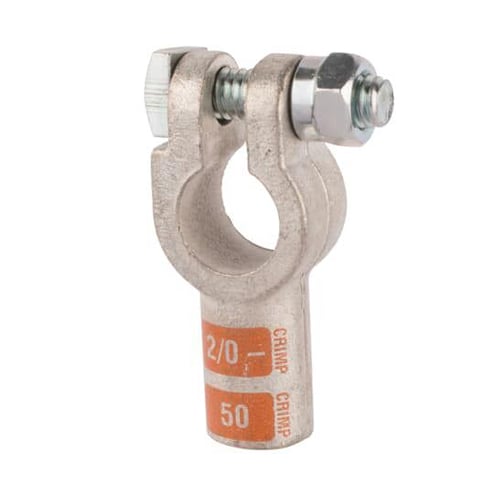

Heavy Duty Battery Connector, Copper Tin-Plated Straight for Positive Post using 2/0 Gauge Battery Cable, Die Color Code Orange

Modified Industry Description

BATTERY LUG 2/0

AD Description

Color-Keyed® BAC20SPBT 1-Stage Heavy Duty Battery Connector,) 2/0 AWG Conductor, Straight Termination, Copper Housing

Vendor Description

Color-Keyed® connectors not only identify the correct installing die to be used for positive compressions, but also indicate the proper placement of the die on the connector. This is done by the bands of color on the connector which match the color on the dies. Compression is made between or on these color bands. The color name is also spelled on the connector as an added means of identification.

Specifications

Application
Positive
Brand Name
Thomas & Betts
Color
Orange
Conductor Size
2/0
Country of Origin
US
Finish
Electro-Plated Tin
Material
Copper
Package_Quantity
5
Special Features

  • Cut and strip cable with proper T&B® tools
  • Each color coded cable size is color matched to the proper connector and installing tool dies have the right connector, cable and die combination
  • TBM5-SV, TBM5V, TBM8250, TBM8250S installing tools
  • Unique cable stripper easily removes the cable insulation without damaging the cable strands and our compression tool and closed barrel connector assure a solid homogeneous mass that provides an optimum electrical bond between connector and cable
Sub_Brand
Color-Keyed
Type
1-Stage Heavy Duty
