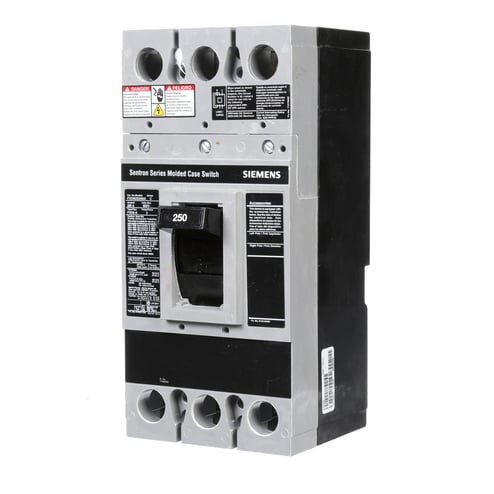

Siemens Siemens FXD63S250AL
Siemens FXD63S250AL
Kirby Risk #: 1925963
UPC: 783643236103, 00783643236103, 78364323610
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC ONLY TRIPUNIT. ASSEMBLED MOLDED CASE SWITCH (BREAKER) FD FRAME WITH STANDARD BREAKING CAPACITY. 250A 3-POLE 600V 3200A SELF-PROTECTIVE INSTANTANEOUS OVERRIDE. NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
Modified Industry Description
BREAKER FD 3P 250A 600V 22KA SW LUGS
AD Description
Siemens Sentron™ FXD63S250AL Type FXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 250 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic/LI Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
250
|
| Application |
Molded Case Switch
|
| Connection |
Line/Load lugs installed
|
| Country of Origin |
MX
|
| Dimensions |
7 in L x 6 in W x 11 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
FXD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
22
|
| Length1 |
11.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
