SolaHD SolaHD E100JN
SolaHD E100JN
Kirby Risk #: 1922756
UPC: 783472531660, 78347253166, 00783472531660
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description
Encapsulated Industrial Control Transformer 100VA, Volts Primary: 208/240/480/600, 200/230/460/575, Volts Secondary: 120/24, 115/23, Frequency: 60 HZ
Modified Industry Description
100VA 208/240/480/600V PRI 120/24V SEC
AD Description

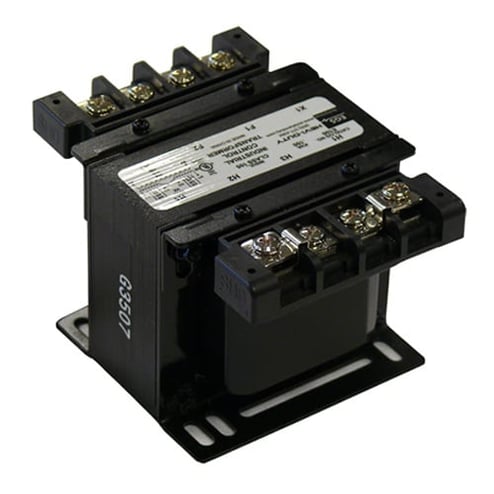

SolaHD E100JN SBE Encapsulated Control Transformer, 208/240/480/600 VAC Primary, 24/120 VAC Secondary, 0.1 kVA, 50/60 Hz, 1 Phase
Vendor Description
The SBE encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
Specifications
| Brand Name |
SolaHD
|
|---|---|
| Country of Origin |
VN
|
| Frequency_Rating |
50/60
|
| Insulation |
105
|
| KVA_Rating |
0.1
|
| Mounting |
Heavy Gauge Steel Mounting Plate
|
| Number_Of_Channels |
208/240/480/600 Volt Primary, 120/24 Volt Secondary; 200/230/460/575 Volt Primary, 115/23 Volt Secondary
|
| Phase |
1
|
| Power_Rating |
0.1
|
| Primary_Voltage |
200 to 600
|
| Secondary_Voltage |
23/120
|
| Special Features |
|
| Standard |
cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant
|
| Sub_Brand |
SolaHD
|
| Type |
Encapsulated
|
| Wattage |
50
|
