NSI NSi PT500
NSI PT500
Kirby Risk #: 1921723
UPC: 00662381033123, 662381033123, 66238103312
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

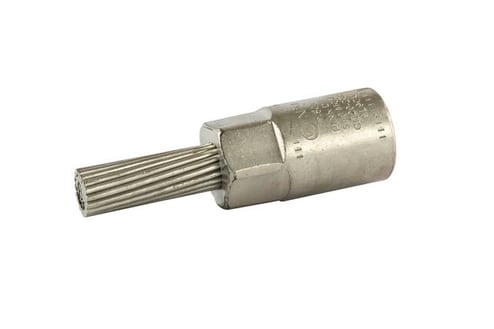

Stranded Bi-Metallic Pin Terminal 500 MCM Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
Modified Industry Description
Bi Metallic Pin Terminal, 500 MCM Wire Size, 350 MCM Tin Plated STRanded Cooper Pin, PINK
AD Description
NSI PT500 Bi-Metallic Pin Terminal With Plastisol Insulating Cover, 350 to 500 kcmil Conductor, 0.681 in Dia x 1.842 in L Pin, Aluminum, Pink
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Pink
|
| Conductor Range |
500 MCM (STR)
|
| Connection |
350 Pin
|
| Country of Origin |
IND
|
| Finish |
Aluminum
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum - Tin Plated Copper Pin
|
| Package_Quantity |
1.000
|
| Size |
L=4.19 - OD=1.33 - ID=.759 - Pin Dia=.681
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Bi-Metallic Pin
|
| Voltage Rating |
600
|
